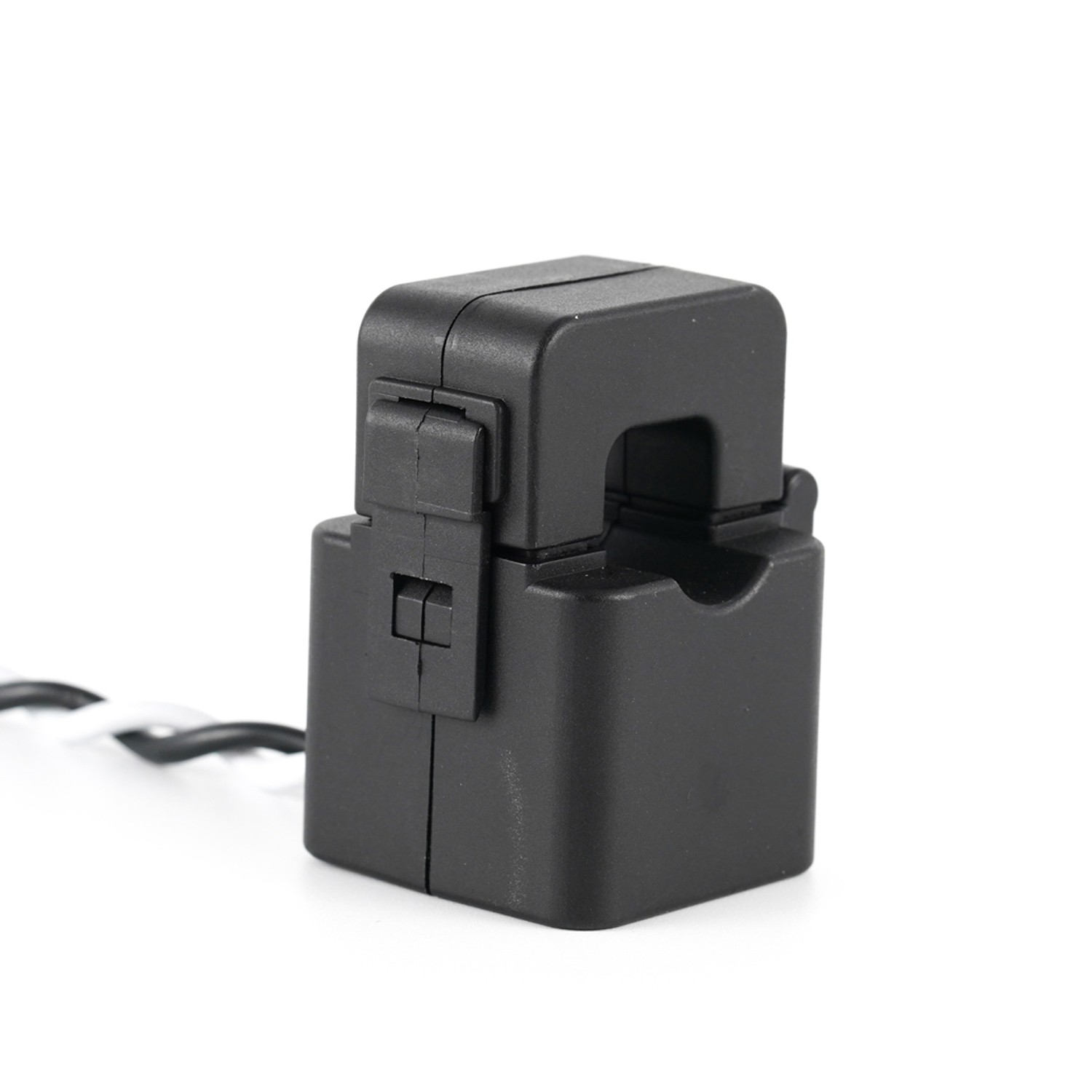

XH-SCT-T12 Split core current sensor

XH-SCT-T12 Split core current sensor

UL 2808 ,xoba split core current sensor

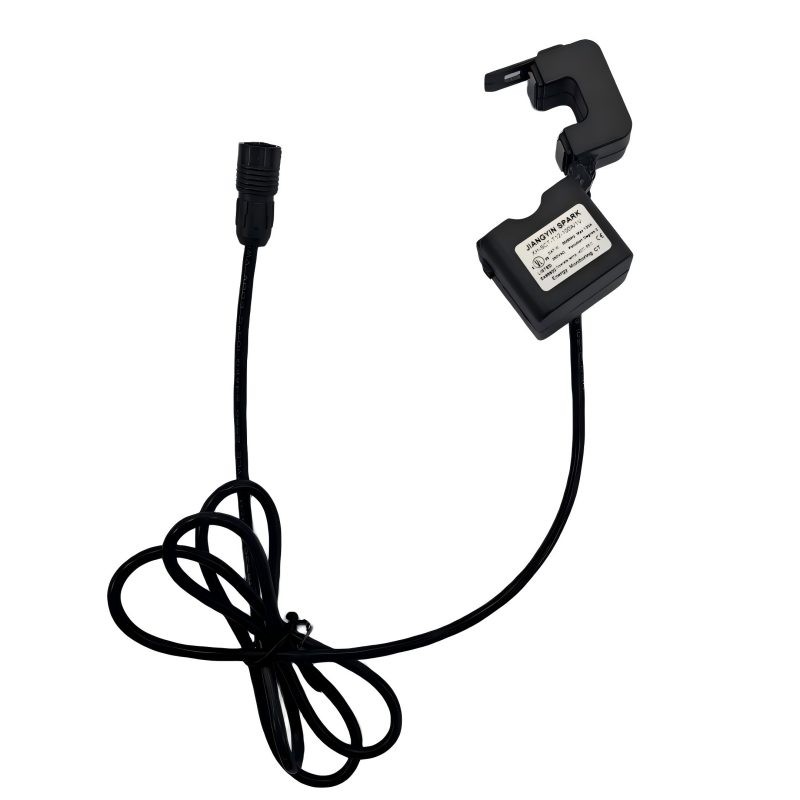

UL2808 XOBA Split Core (clip on ) Current Sensor XH- SCT-T12

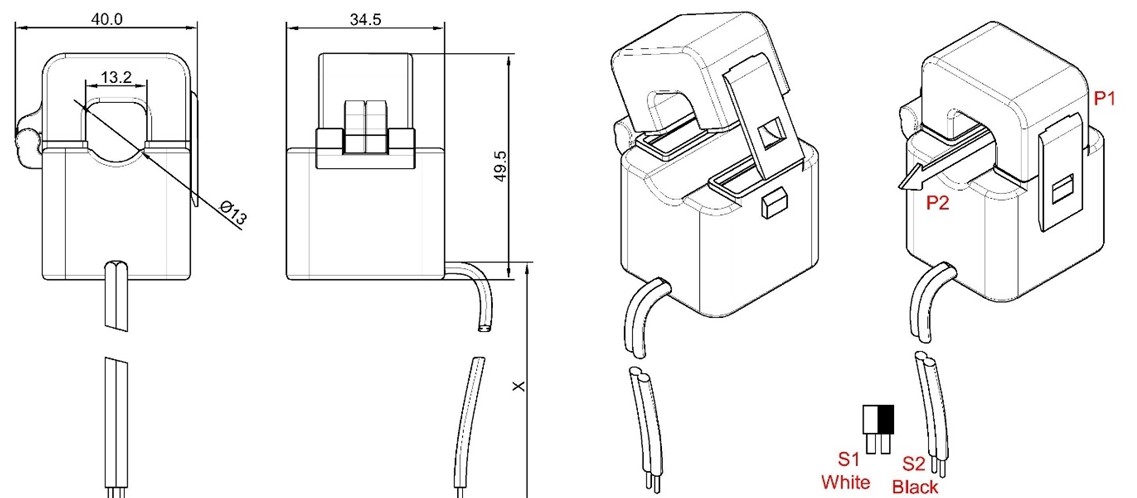

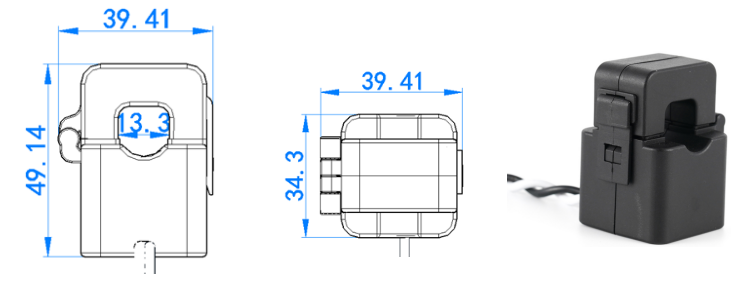

ID 12mm Opening With 1A To 120 Amp Rating

Description:

Jiangyin Spark XH-SCT-T12 energy monitoring split-core current transformer, AC current from 1 to 120 Amps passing through the center conductor.Split core CTs are designed for fast and easy installation.The split core design permits non-contact current measurements through magnetic field induction without requiring that the primary wire be taken offline and disconnected for CT installation.Built in resistor provides 0.333V output ,this method permits a safer,easy and portable current measurement.

One-handed opening and closing mechanism makes a snap installation

  一、 SPECIFICATIONS :

1、Input : 1A to 120Aac

2、Output: 0.333V or mA ,mV at rated current

        3、Rated Voltage:0.66KV

        4、Insulation Voltage:4000V

        5、Rated Frequency:50-400Hz

        6、Operating Temperature:-40℃to 85℃

        7、Flame resistance:UL94-V0

        8、Certificates: UL2808 ,CE, RoHS and IEC61010-1
