XH-SCT-T06 Split core current sensor

UL2808 XOBA Split Core (clip on ) Current Sensor XH- SCT-T06

ID 6mm Opening With 0.2A To 80 Amp Rating

Description:

Jiangyin Spark XH-SCT-T06 energy monitoring split-core current transformer, AC current from 0.2A to 80 Amps passing through the center conductor.Split core current transformers are designed for fast and easy installation.The split core design permits non-contact current measurements through magnetic field induction without requiring that the primary wire be taken offline and disconnected for CT installation.Built in resistor provides 0.333V output ,this method permits a safer,easy and portable current measurement.

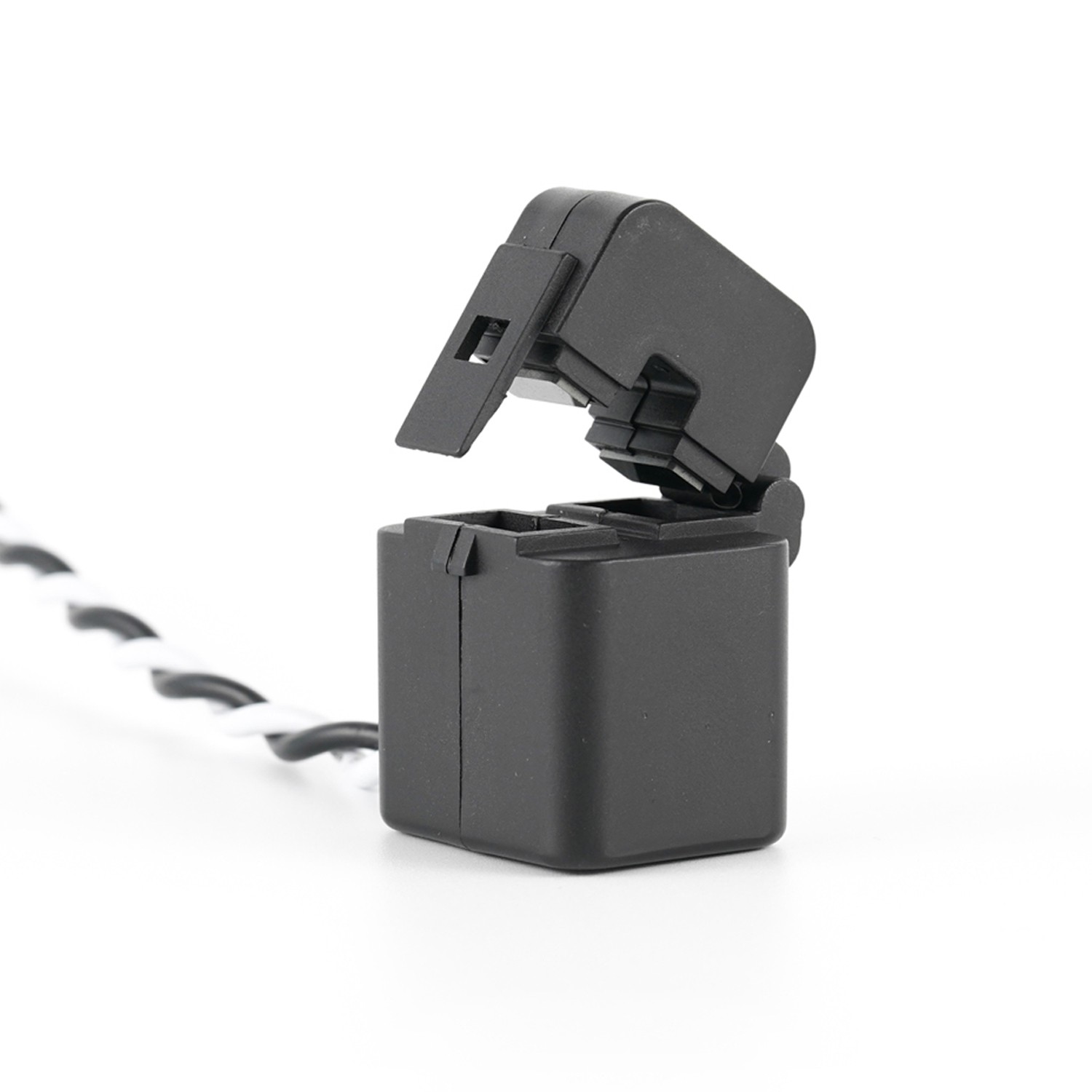

One-handed opening and closing mechanism makes a snap installation

一、 SPECIFICATIONS ：

1、Input : 0.2A to 80Aac

2、Output: 0.333V or mA ,mV at rated current

        3、Rated Voltage：0.66KV

        4、Insulation Voltage：4000V

        5、Rated Frequency：50-400Hz

        6、Operating Temperature：-40℃to 85℃

        7、Flame resistance：UL94-V0

        8、Certificates： UL2808 ,CE, RoHS and IEC61010-1

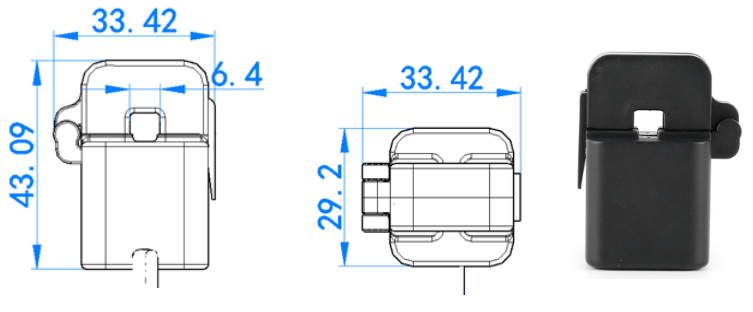

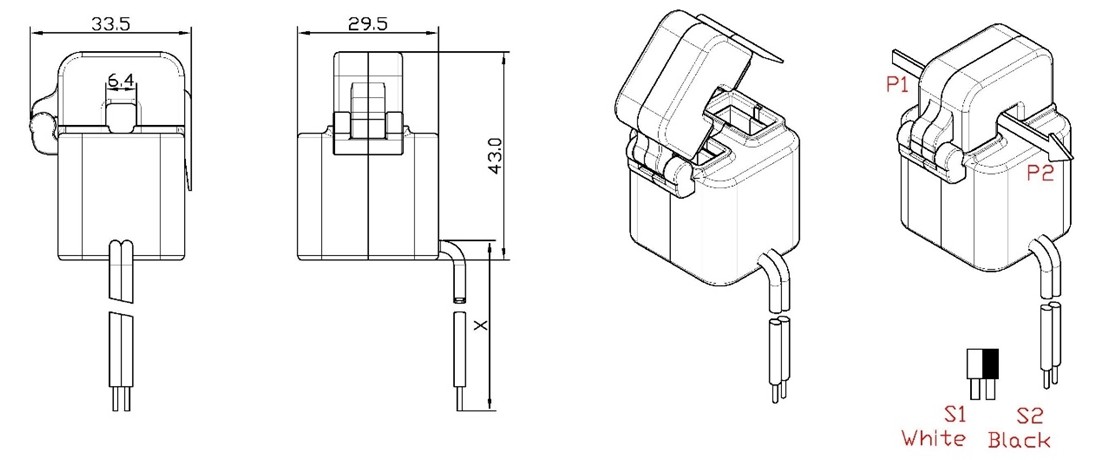

三、DIMENSIONS( mm )：
