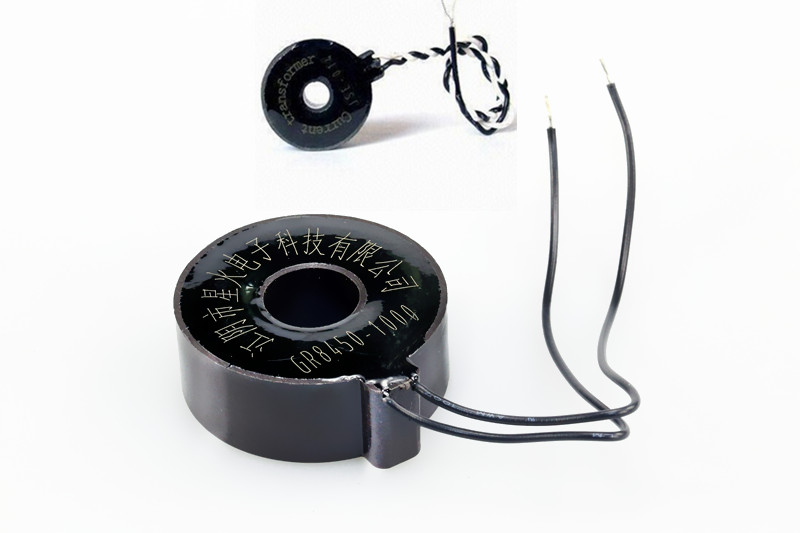

Wire Lead Current Transformer

Features:

• Small size
• High accuracy
• Wide linear range
• Good consistency
• PCB mounted or lead terminal
• 50 standard sizes are available
• Toroidal nanocrystalline and nickel alloy cores are available

Specifications:

• Exterior materials: PBT resin and UL flame
• Retardant rating: 94-V0
• Interior insulation: Epoxy encapsulated
• Isolation current: 2, 500Vrms for 1 minute
• Dielectric resistance: 1, 000MΩ at 500V DC
• Surge withstand voltage: 5, 000V (1.2/50μ s standard shock wave)
• Operating temperature: -25 to +55 and -40 to +85° C optional
• Frequency: 50 to 400Hz
• Accuracy class: IEC 60044-1

Applications:

• Minimal phase angle error watt-hour meter
• Electric energy measurement device
• RoHS Directive-compliant
