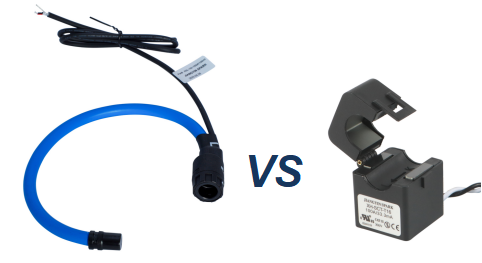

What is the difference between rogowski coils and CT

Struggling with bulky, hazardous current transformers? Their difficult installation and risk of inaccurate readings can derail projects. A flexible, safer alternative exists for modern power monitoring needs.

The biggest difference is their core. A traditional Current Transformer (CT) has a heavy iron core, but a Rogowski coil is coreless. This makes the Rogowski coil flexible, safer, and prevents saturation, making it better for measuring high currents and complex signals.

I've seen firsthand how choosing the wrong sensor can complicate a project. As a Global Commodity Manager for residential inverters, I often speak with engineers who face this exact problem. They need a reliable way to measure current, especially in retrofits or high-power systems where traditional CTs are just too clumsy. The choice between a CT and a Rogowski coil isn't just a technical detail; it directly affects your installation time, the safety of your technicians, and the quality of your data. The coreless design of the Rogowski coil is the key to solving many of these issues. Let's look closer at why this simple difference is so important for your projects. Understanding these details will help you make a much better decision for your next system design.

What are the benefits of Rogowski coils?

Trying to install rigid sensors on large busbars or in tight electrical cabinets? This often means costly downtime and custom work. Rogowski coils offer key benefits that simplify installation.

Rogowski coils offer flexibility for easy installation around large or awkward conductors. They have excellent linearity because they don't have a core that can saturate. They also have a wide dynamic range and are much safer, with no risk of hazardous open-circuit voltages.

The benefits of Rogowski coils become very clear when you work on real-world projects. From my experience in global sourcing, I've seen engineers save entire days of work and avoid major headaches just by choosing this technology over older methods.

Superior Flexibility and Installation

The most obvious benefit is the physical design. I recall a project manager for a large data center telling me they had to measure current on a huge, awkwardly shaped busbar. A traditional CT was out of the question without a full shutdown and custom fabrication. Instead, they used a large-diameter Rogowski coil. They just opened it, clipped it around the busbar, and were ready to go in under ten minutes. This flexibility makes them perfect for retrofitting old systems where space is tight and you can't interrupt power.

Unmatched Linearity and Accuracy

Because Rogowski coils have no iron core, they cannot saturate. Core saturation happens when a traditional CT is exposed to a current higher than its rating, causing it to stop measuring accurately. A Rogowski coil, however, maintains its linear response over a huge range of currents. This is critical for monitoring systems with large motors that have high inrush currents on startup or for capturing fault currents accurately. You get reliable data where a CT would fail.

Enhanced Safety Profile

This is a big one. If the secondary circuit of a traditional CT is accidentally left open while current is flowing through the primary, it can generate extremely high, lethal voltages. It's a major safety hazard during installation and maintenance. Rogowski coils don't have this risk. Their output is a low-level voltage signal, making them intrinsically safe. This gives engineers and technicians valuable peace of mind.

Here's a quick summary of the differences:

What is the function of a Rogowski coil?

Need to monitor AC current for things like power quality or fault detection? Standard sensors can miss fast transients, leaving you with incomplete data and potential system issues.

A Rogowski coil's main function is to measure alternating current (AC). It works by producing a small voltage signal that perfectly matches the rate of change of the current. This signal is then processed by an integrator to give you an accurate representation of the current flow.

The function of a Rogowski coil is quite elegant once you understand the two-step process. In my role, I've had to explain this to sourcing managers who aren't electrical engineers, so I've learned to keep it simple. It's not just a sensor; it's a measurement system that consists of two key parts working together.

Measuring the Rate of Change (The Derivative)

Unlike a CT that directly transforms current, a Rogowski coil measures the rate of change of the current. Based on a principle called Faraday's Law of Induction, the magnetic field created by the changing AC current induces a voltage in the coil. The faster the current changes, the higher the voltage output. This is why Rogowski coils are exceptional at capturing very fast events, like electrical faults or the high-frequency switching noise from a residential solar inverter. They see the details that other sensors miss completely.

The Critical Role of the Integrator

This output voltage, however, is not a direct representation of the current. It's what engineers call the derivative. To get a useful signal that mirrors the current waveform, the coil's output must be passed through an electronic circuit called an integrator. The integrator performs the mathematical reverse operation. It effectively "adds up" all the changes over time to reconstruct the original current waveform accurately. Think of the coil as providing the speed of the current, and the integrator calculating the distance it traveled. Most modern Rogowski sensors we source at Spark have this integrator built right into their hardware for convenience. This two-part function is what unlocks its use in so many modern applications, from smart grids to industrial automation projects where signal purity is key.

What is the Rogowski coil method and how do you use it?

So you have a Rogowski coil, but you're unsure how to use it correctly. Proper positioning and connection are critical, and mistakes can lead to very inaccurate measurements.

The Rogowski coil method is straightforward. First, simply clip the coil around the conductor. Then, connect its cable to the integrator unit. Finally, connect the integrator's output to your measurement device. Proper placement around the conductor is key for accuracy.

As a professional supplier, our job doesn't end when the product ships. We want to ensure our clients get the best results. The Rogowski coil method is simple, but a few details make all the difference between a poor reading and a perfect one. I often walk new users through these steps to ensure they get reliable data from day one.

Step 1: Physical Installation of the Coil

First, open the flexible coil at its bayonet connection point. Wrap it around the single conductor you wish to measure, then securely close the latch until it clicks. For the best accuracy, try to center the conductor within the loop of the coil and keep the coil's shape as circular as possible. Most importantly, check for a small arrow printed on the coil's casing. This arrow indicates the direction of current flow for a positive reading. Make sure it points away from the power source and toward the load for correct phase measurement.

Step 2: Connecting to the Integrator

The coil is only half of the system. Its output cable must be connected to its specific, matched integrator. I can't stress this enough: coils and integrators are calibrated as a pair. Using a coil from one manufacturer with an integrator from another will almost certainly give you incorrect readings. This is a common support call we get. The integrator provides the necessary power to the coil and performs the crucial signal conversion from a derivative to a standard current representation.

Step 3: Reading the Output

Finally, take the output from the integrator and connect it to your measuring instrument. This could be a multimeter, a power quality analyzer, or a data acquisition system. The integrator will have a defined output, for example, 1 Volt per 1000 Amps (1V/1000A). You must configure your measuring device with this correct scaling factor to display the current in amps. Once that's set, you're ready to get precise, real-time current measurements.

Conclusion

In short, Rogowski coils are a flexible, safe, and highly accurate alternative to traditional CTs. They excel in modern applications, simplifying installation and providing superior data for complex systems.
