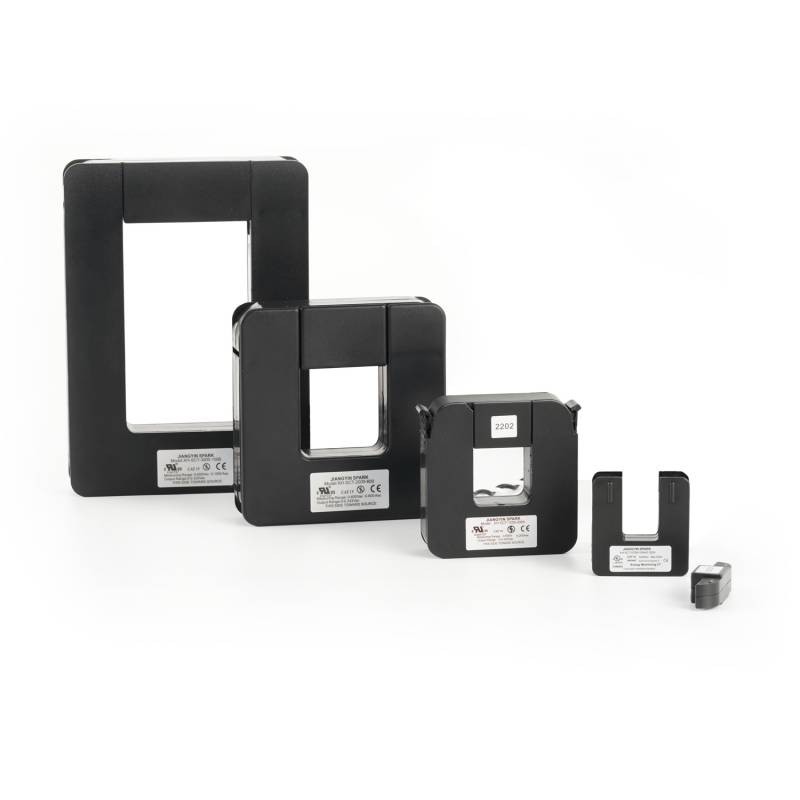

Split Core Current Transformer SCT 333mV Secondary Output
The JIANGYIN SPARK this series of split core current transformer have UL2808 xoba certificate , designed for fast and easy installation.The split core design permits non-contact current measurements through magnetic field induction without requiring that the primary wire be taken offline and disconnected for CT installation.This method permits a safer,easy and portable current measurement. An internal precision burden resistor across the secondary winding of the CT provides a safe low voltage output and permits safe opening of the secondary.
Features
Low cost.
Split core design;safer,easier installation,portable.
Specifications
-
Rated Current 5A to 3000A loads.
-
Rated output: 0.333Vac
-
Accuracy:±1% from 5% to 120% of rated current
-
Phase Angle: less than 2 degrees at 50% of rated current
-
Insulation Voltage:600Vac
-
Maximum Primary Voltage:5000Vac(Insulated Conductor)
-
Operating Temperature:-35℃to 65℃.
-
Frequency Range:50-400Hz
-
Leads:4Foot(105cm),UL 1015,Twisted Pair,20AWG
-
UL&CE recognized. RoHS Compliant,UL file number:E341727
-
Output and leads can be customized
Application:
Measures AC current flow to electric motors, lighting, air conditioning equipment, etc.Compatible with HVAC temperature control, power management,building automation systems.

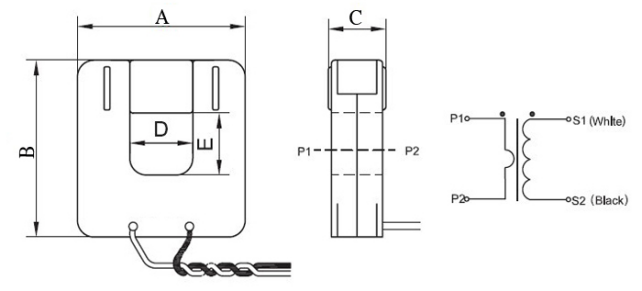

Dimension：mm
|
Model
|
I.D.
|
Rated Amps
|
Output
|
Accuracy
|
SIZE（mm）
|
|
A
|
B
|
C
|
D
|
E
|
|
XH-SCT-0750
|
0.75"
(19.1mm)
|
5 to 200A
|
0.333V
|
1.0
|
51.6
|
54.1
|
16.6
|
19.1
|
18
|
|
XH-SCT-1250
|
1.25"
(31.8mm)
|
50 to 600A
|
1.0
|
82.3
|
85.3
|
26.4
|
32
|
32.3
|
|
XH-SCT-2000
|
2.00"
(50.8mm)
|
200 to 1200A
|
1.0
|
120
|
125
|
29.6
|
52.5
|
52
|
|
XH-SCT-3000
|
3.00" x 5.00"
(76.2 x127mm)
|
500 to 3000A
|
1.0
|
145
|
199
|
30.5
|
76
|
130
|
Performance Curve:
