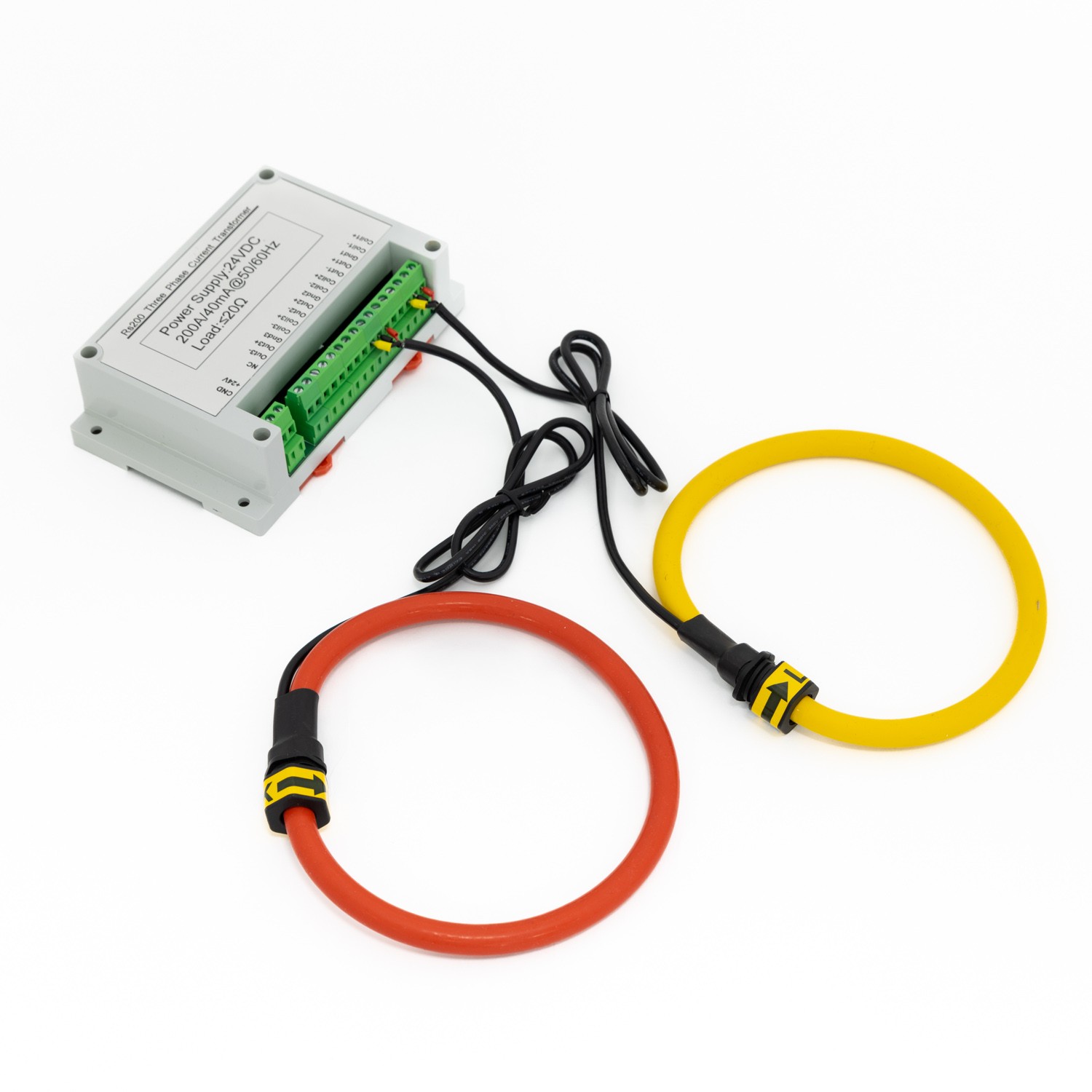

Two phase Rogowski Coil 200A/40mA UL list

200A/40mA ac output,2 phase ,20ohms

Detail
Feedback

RS200 Rogowski coil transducer (40mAac) is based on the industrial demand and design a with high precision, high safety, low power consumption of the transmitter. The power meter can be in a variety of specifications、the instrument is connected.

输入电流范围(AC) Current range(AC)	200	A
测量电流范围 Measure range	5% - 120%	%
工频频率 Power frequency	45-65	Hz
额定输出电流 Rated output current	40mA	Aac
负载（Load）	≤20	Ω
电源电压 Supply voltage	12V@≥0.5A	V
功耗电流 Power Consumption	＜100	mA
失调温漂 Offset drift	@ -25～+70℃ ≤±1	mV/℃
精度 Accuracy	≤1	%
线性度 Linearity	≤1	%FS
响应时间 Response time	≤20	ms
绝缘电压 Galvanic isolation	AC,1min 10	KV
绝缘阻抗 Isolation resistance	@ DC 500V 1000	MΩ
工作温度 (TA) Operating temperature	-25 to +55	℃
认证 Certificates	UL , CE ,Rohs
