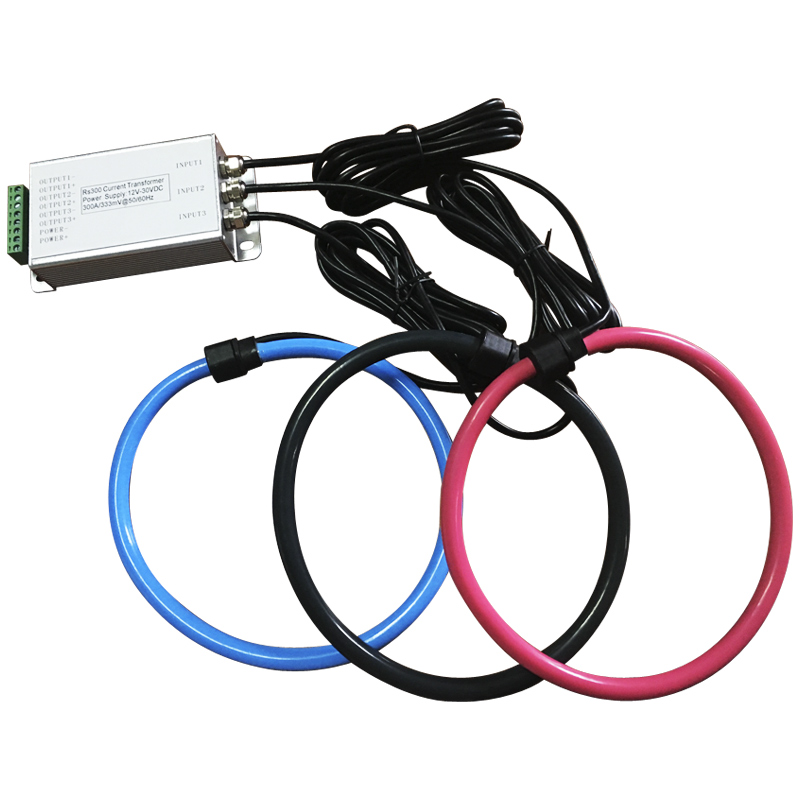

Three phase Rogowski Coil 0.333V

UL three phase rogowski coils 0.333V output

Detail
Feedback

3RS series Rogowski coil ,three phase with integrator ,can be true to restore the input current and at the same time have a certain filter amplification,so that the waveform is more smooth and practical, wide measuring range,high precision ,stable and reliable response and wide frequency band etc. Widely used in metallurgy,electroplating ,frequency control and other fields.

输入电流范围 Current range(AC)	100-100K	A(ac)
测量电流范围 Measure range	5% - 120%	%
工频频率 Power frequency	45-65	Hz
频带宽 frequency band	10 - 10KHz	Hz
额定输出电压 Rated output	0.1-5Vac(典型333mVac)	Vac
电源电压 Supply voltage	12 - 30V	V
功耗电流 Power Consumption	<30	mA
失调电压 Offset voltage	≤3	mV
失调温漂 Offset drift	@ -25～+70℃ ≤±1	mV/℃
精度 Accuracy	≤1	%
线性度 Linearity	≤1	%FS
响应时间 Response time	≤20	ms
绝缘电压 Galvanic isolation	AC,1min 10	KV
绝缘阻抗 Isolation resistance	@ DC 500V 1000	MΩ
工作温度 (TA) Operating temperature	-25 to +50	℃
认证 Certificates	UL ,CE ,Rohs
