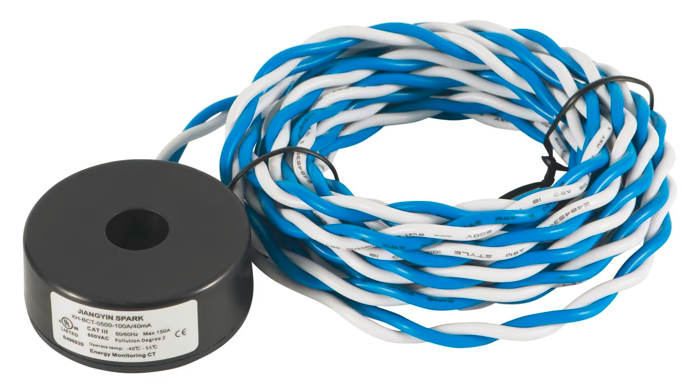

SunPower XH-BCT-0500-100A/40mA Solid Core Current Transformer CTs

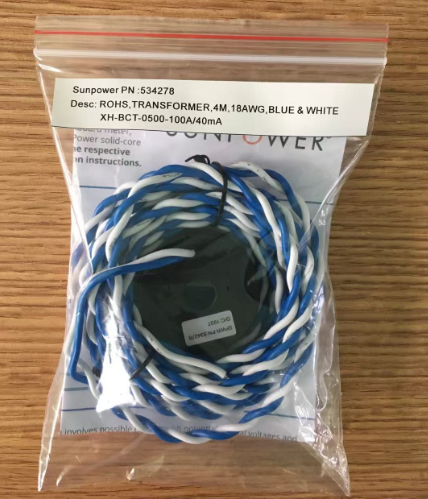

Sunpower 100A 40mA Solid-Core Current Transformer 534278 4M Compatible with PVS6

Specifications:
1. Rated input current: 100A
2. Rated output :40mA
3. Accuracy ±0.2%
4.Insulation Voltage:5400V, CATIII 600V or CATIV 250V
5.Rated Frequency:50HZ or 60HZ;
6.Operating Temperature:-40ºC to +85ºC
7.UL2808 ,RoHS Compliant
8.Tensile force value: 9.08 kg(89N) for 1 minutes

Product Structure Schematic:
