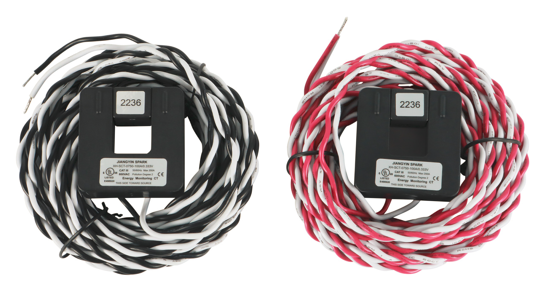

SunPower PVS5 PVS6 Consumption CT Kit 522398 XH-SCT-0750-100A 0.333V Split Core Current Transformer

SunPower PVS5 PVS6 Consumption CT Kit 522398 XH-SCT-0750-100A 0.333V Split Core Current Transformer

Specifications:
1. Rated input current: 100Aac

2. Rated output :0.333Vac

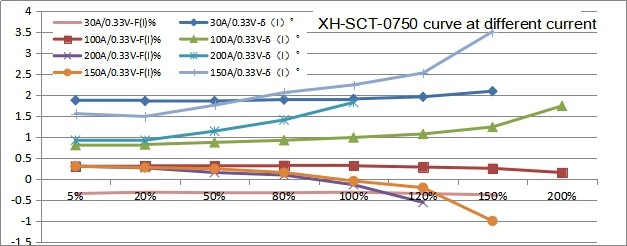

3. Accuracy ±1%

4.Insulation Voltage:5400V, CATIII 600V or CATIV 250V

5.Rated Frequency:50HZ or 60HZ;

6.Operating Temperature:-40ºC to +85ºC

7.UL2808 ,RoHS Compliant

8.Tensile force value: 9.08 kg(89N) for 1 minutes

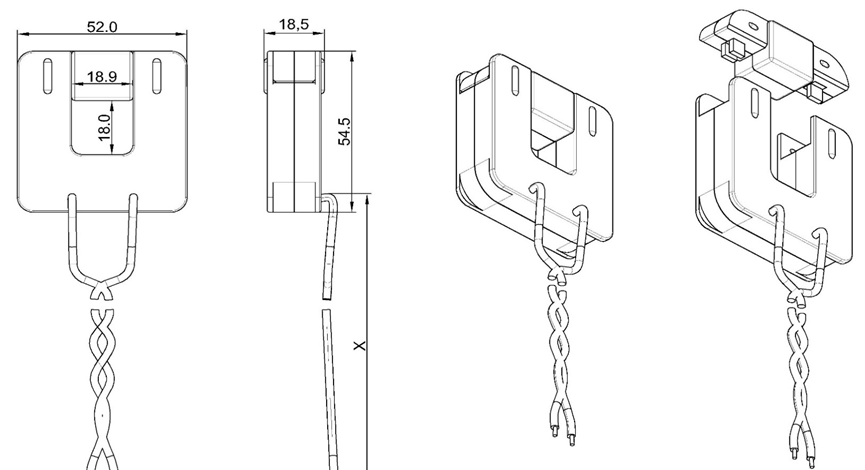

Product Structure Schematic:
