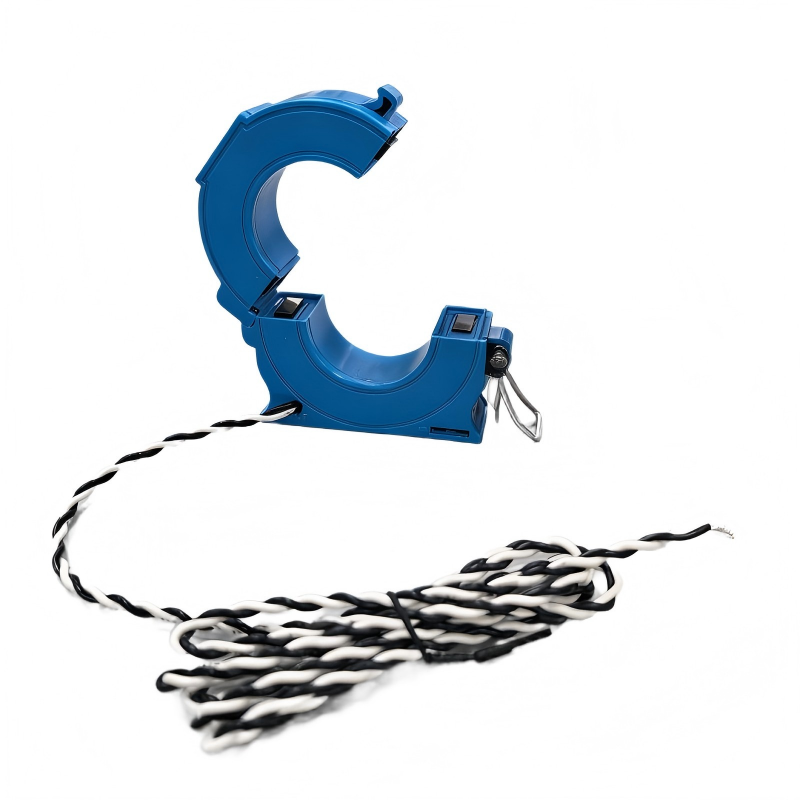

Split Core Zero Sequence Current Transformer ZCT45

Split core Zero sequence current transformer

The JIANGYIN SPARK series of split core Zero sequence current transformer are designed for fast and easy installation.A Zero-Phase Current Transformer (ZCT), also known as a Core Balance Current Transformer (CBCT) or Zero-Sequence CT, is a specialized sensor used to detect ground faults and leakage currents in three-phase systems by measuring the vector sum of all phase currents. It acts as a safety device, providing high sensitivity (mA level) to trigger breakers during electrical

Features

Split core design;safer,easier installation,portable.

Specifications

1. Rated current:200mA

2. Ratio : 1000T

3. Output :1.5mA

4. ID :45mm

5. UL 94-V0 materials

6. Operate Voltage: 0.66/0.75KV

7. Insulation Voltage:3KV/1min

8. Rated Frequency:50/60 Hz

9. Operating Temperature:-40ºCto 70ºC

Applicable Scenario:

Can be for outdoor use;
Applicable cable specifications: φ45mm;
Applicable primary current: 600A;
Applicable secondary current: mA/mV;
Nylon material housing, according to UL94-V0 grade;
Applicable for cable output, length customized.
