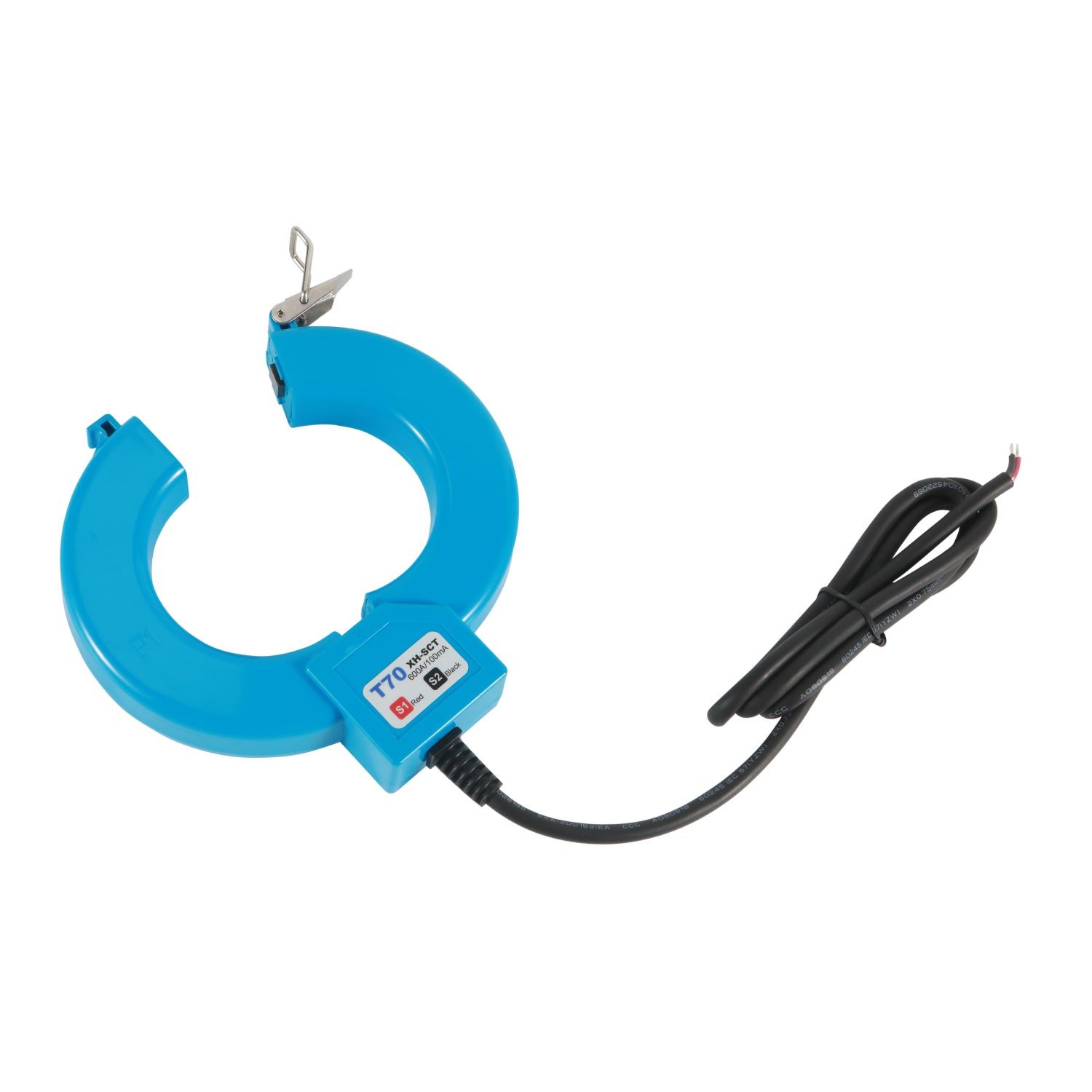

Split core current transformer XH-SCT-T70

Split-Core AC Current Transformer XH- SCT-T70

φ70mm Opening With 500 To 1000 Amp Rating

Description:

Jiangyin Spark XH-SCT-T70 Series split-core current transformer senses AC current from 500 to 1000 Amps passing through the center conductor.Split core CTs are designed for fast and easy installation.

Features:
Maximum continuous primary current 1000A AC
Output: 1A,5A ,mA or mV at rated current
Accuracy: 0.5%
Maximum Primary Voltage: 5000Vac(Insulated Conductor)
Frequency Range: 50 Hz to 400 Hz
Operating Temperature: -25 Cto 60 C.
CE and RoHS compliant
Output and leads can be customized

Dimensions：mm
