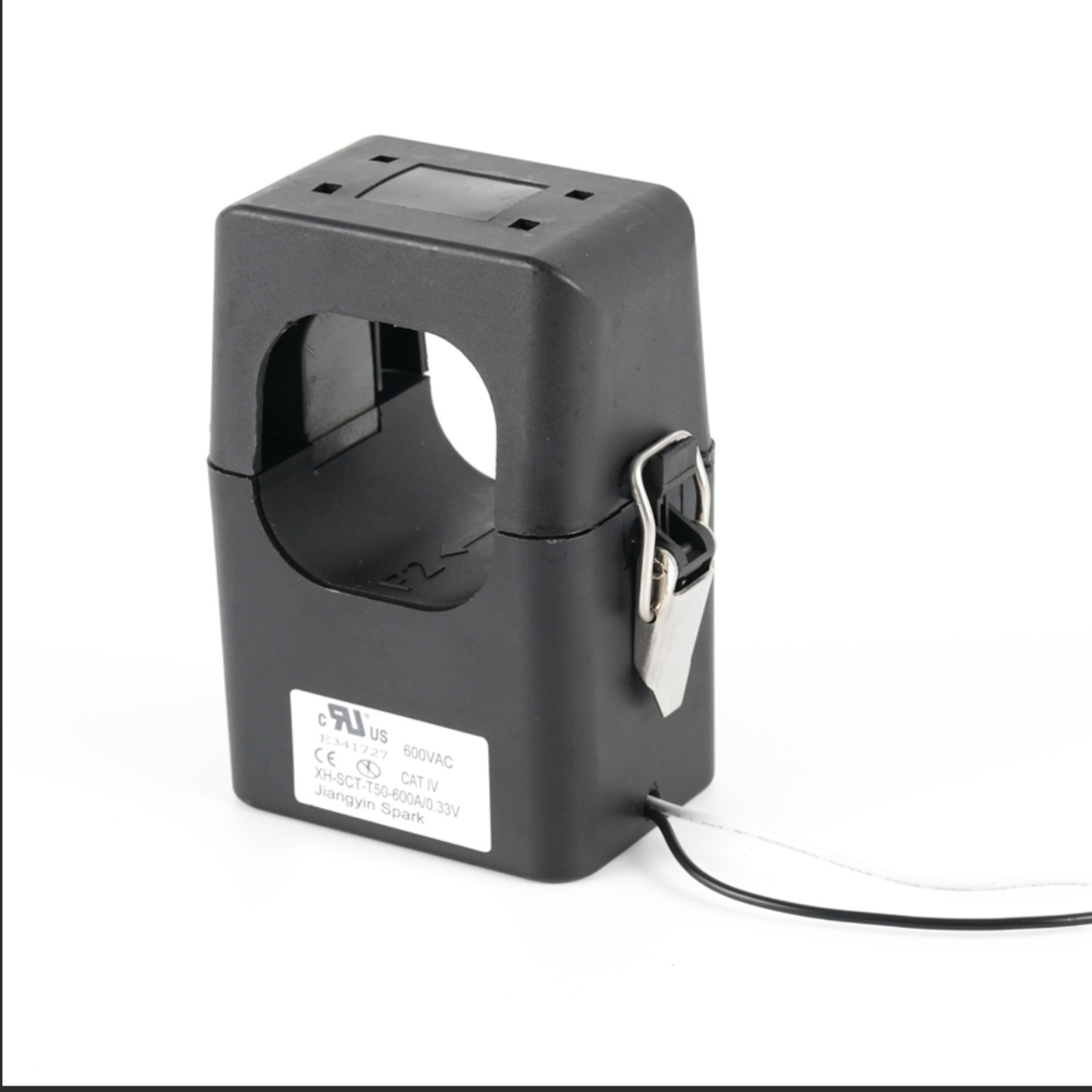

Split core Current Transformer XH-SCT-T50

Split-Core AC Current Sensor XH- SCT-T50

φ50mm Opening With 600 To 1000 Amp Rating

Description:

Jiangyin Spark XH-SCT-T50 Series split-core current senses AC current from 600 to 1000 Amps passing through the center conductor. Split core CTs are designed for fast and easy installation.The split core design permits non-contact current measurements through magnetic field induction without requiring that the primary wire be taken offline and disconnected for CT installation.This method permits a safer,easy and portable current measurement.

Specifications:

Maximum continuous primary current 1000A AC

Output: 1A,5A ,mA or mV at rated current

Accuracy: 0.5%

Maximum Primary Voltage: 5000Vac(Insulated Conductor)

Frequency Range: 50 Hz to 400 Hz

Operating Temperature: -25 Cto 75 C.

UL,CE and RoHS compliant

Output and leads can be customized

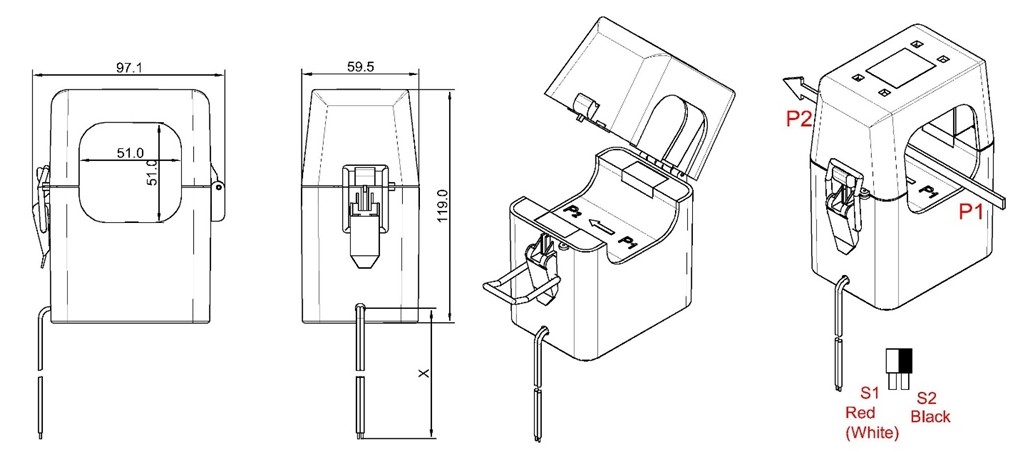

Dimensions：mm
