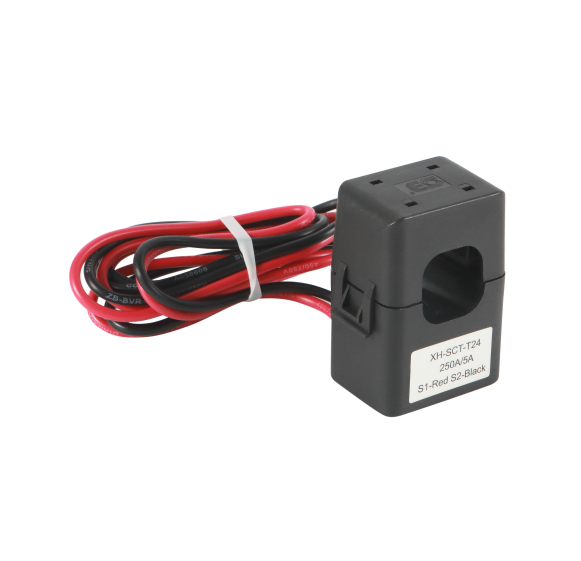

Split Core Current Transformer XH-SCT-T24 1A/5A output

Split Core Current Transformer XH-SCT-T24 1A/5A output

Specification:

  • Maximum continuous primary current 50A to 400AAC

  • Output:1A or 5A at rated current

  • Accuracy: ± 1% 2VAIndoor or Outdoor use,Outdoor type with rubber cover

  • Insulation Voltage: 600VAC

  • Maximum Primary Voltage: 5000VAC(Insulated Conductor)

  • Phase angle: Less than 2 degrees at 50% of rated current

  • Frequency Range: 50 Hz to 400 Hz

  • Operating Temperature: -15C to 60C.

  • Leads: 1.0 m cable

  • CE recognized, and RoHS compliant

  • Output and leads can be customized



Model Input(A) Max currnet(A) Turns(T) Burden(Ω) Output
XH-SCT-T24 50A-400A 400 3000 100 mA/0.333VAC/1A/5A

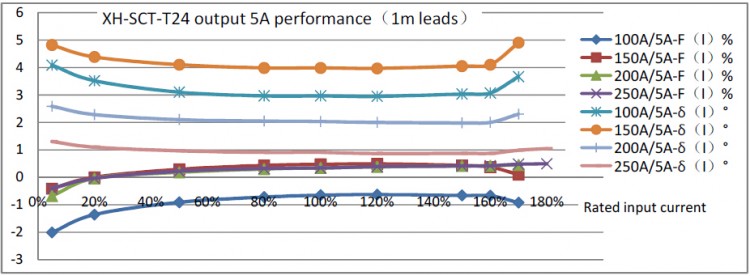

Performance Curve:
