Split Core Current Transformer XH-SCT-T16

Split-Core Current Transformer XH- SCT-T16-100A/33.3mA, 3000：1

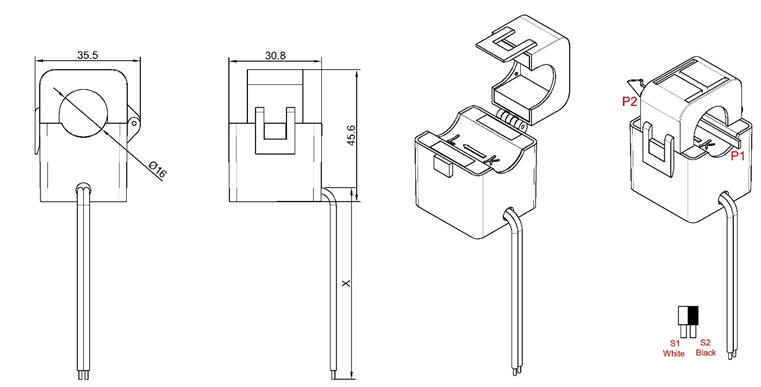

φ16mm Opening With 50 To 120 Amp Rating

Description:

Split-core current transformer XH-SCT-T16 senses AC current from 50 to 120 Amps passing through the center conductor.Split core CTs are designed for fast and easy installation.The split core design permits non-contact current measurements through magnetic field induction without requiring that the primary wire be taken offline and disconnected for CT installation.This method permits a safer,easy and portable current measurement.

Features:

• Maximum continuous primary current 100 A AC
• Output: 33.3mA
• Current Ratio: 3000: 1
• Maximum Primary Voltage: 5000Vac(Insulated Conductor)

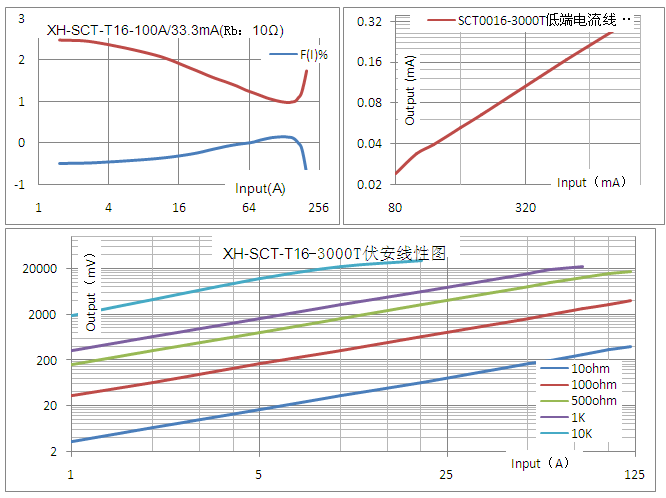

• Phase angle: Less than 2 degrees at 50% of rated current
• Frequency Range: 50 Hz to 400 Hz
• Accuracy: ± 1% from 5% to 120% of rated current
• Operating Temperature: -15 Cto 60 C.
• Insulation Voltage: 600Vac
• Leads: UL1015 24AWG twist Black &White
• UL , CE recognized, and RoHS compliant
• Output and leads can be customized

Applications:

• Sub-Metering Accurate Measurement
• Data Loggers to analyze Building & Machinery Performance
• Digital Fault Recorders
• Smart Grid Application Features
• Load Center
• Three Phase Balance Control
• In-Factory Display In-Home Display
• Inverters for Solar & Wind Turbine Systems
• Power Measurement Device For PLC
