UL 2808 (XOBA)Split Core Current Transformer 333mV

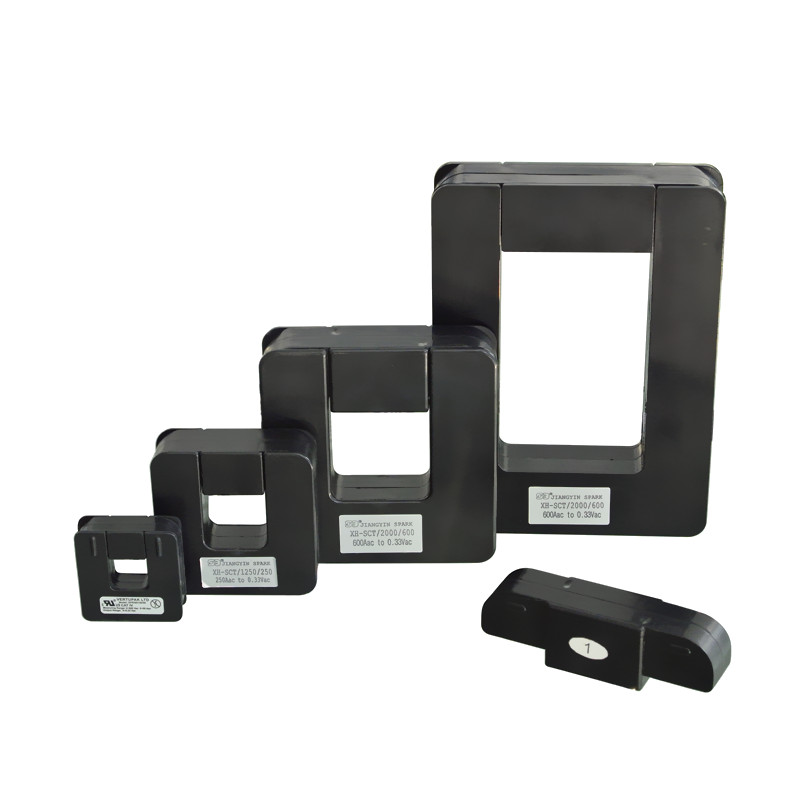

Split Core Current Transformer SCT 333mV Secondary Output

The JIANGYIN SPARK series of split core current transformer are designed for fast and easy installation.The split core design permits non-contact current measurements through magnetic field induction without requiring that the primary wire be taken offline and disconnected for CT installation.This method permits a safer,easy and portable current measurement. An internal precision burden resistor across the secondary winding of the CT provides a safe low voltage output and permits safe opening of the secondary.

Features

Low cost.
Split core design;safer,easier installation,portable.

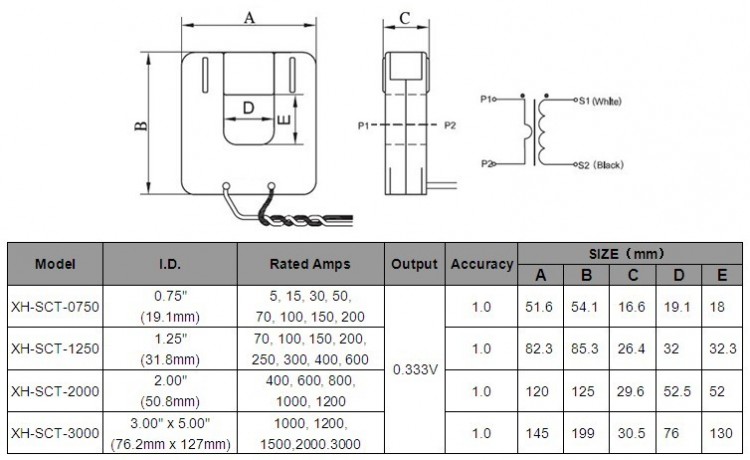

Specifications

• Rated Current 5A to 3000A loads.
• Rated output: 0.333Vac
• Accuracy:±1% from 5% to 120% of rated current
• Phase Angle: less than 2 degrees at 50% of rated current
• Insulation Voltage:600Vac
• Maximum Primary Voltage:5000Vac(Insulated Conductor)
• Operating Temperature:-35℃to 65℃.
• Frequency Range:50-400Hz
• Leads:4Foot(105cm),UL 1015,Twisted Pair,20AWG
• UL&CE recognized. RoHS Compliant,UL file number:E341727
• Output and leads can be customized

Application:

Measures AC current flow to electric motors, lighting, air conditioning equipment, etc.Compatible with HVAC temperature control, power management,building automation systems.

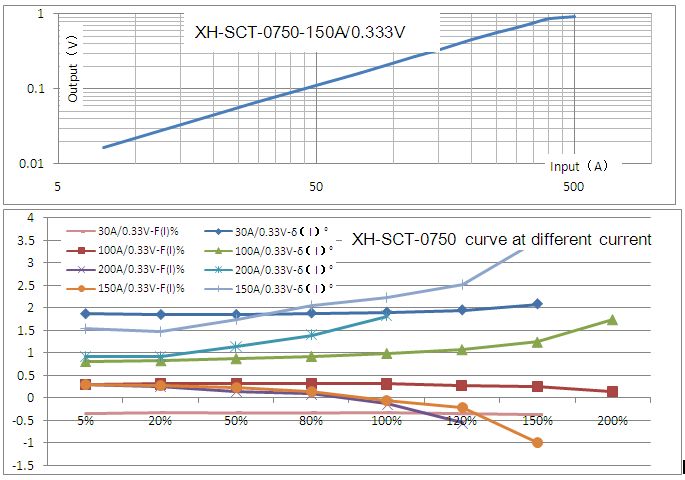

Performance Curve:
