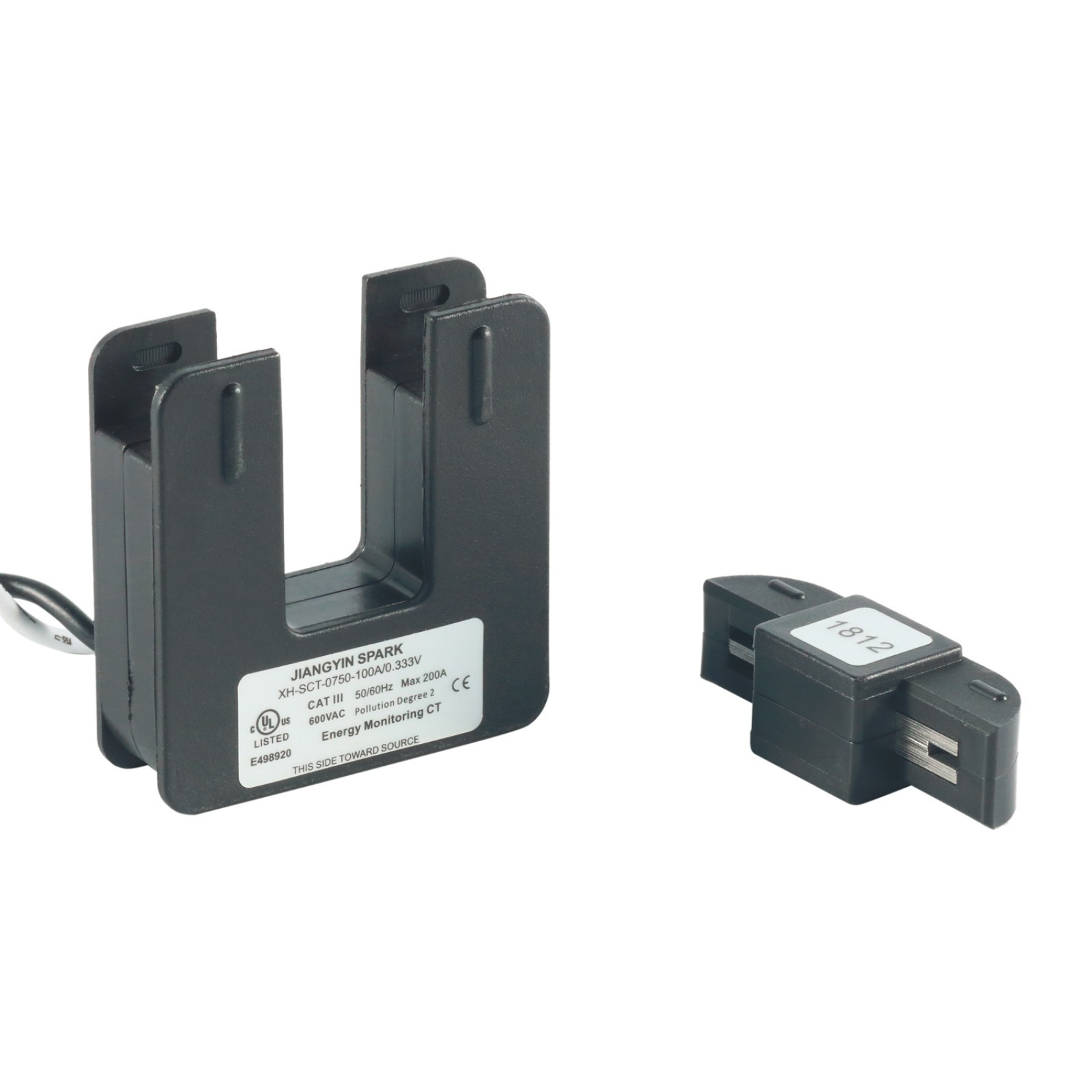

Split core current transformer 0.75 inch XH- SCT-0750

0.75" Opening measures from 5 to 200 Amps

Description:

Jiangyin Spark SCT-0750 Series split-core current transformer“sense” AC current up to 200 Amps passing through the center conductor. Split core CTs are designed for fast and easy installation.It permits non-contact current measurements through magnetic field induction without requiring that the primary wire be taken offline and disconnected for CT installation. This method permits a safer,easy and portable current measurement. An internal precision burden resistor across the secondary winding of the CT provides a safe low voltage output and permits safe opening of the secondary

Features:

1、Rated Voltage：0.66KV；

2、Insulation Voltage：5400V

      CATIII 600V or CATIV 250V

3、Rated Frequency：50HZ or 60HZ；

4、Operating Temperature：-40℃ to +55℃；

5、Flame resistance：UL94-V0；

6、Leads: UL 1015 18awg

7、Certificates：UL2808 and IEC61010-1

Application:Measures AC current flow to electric motors, lighting, air conditioning equipment, etc.Compatible with HVAC temperature control, power management,building automation systems.

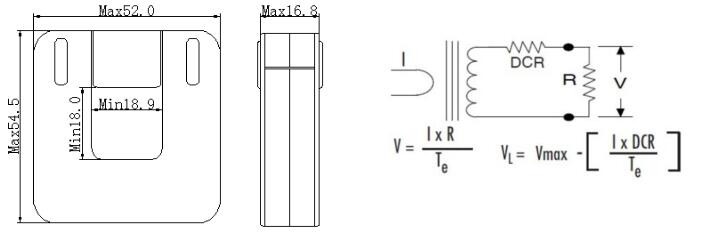

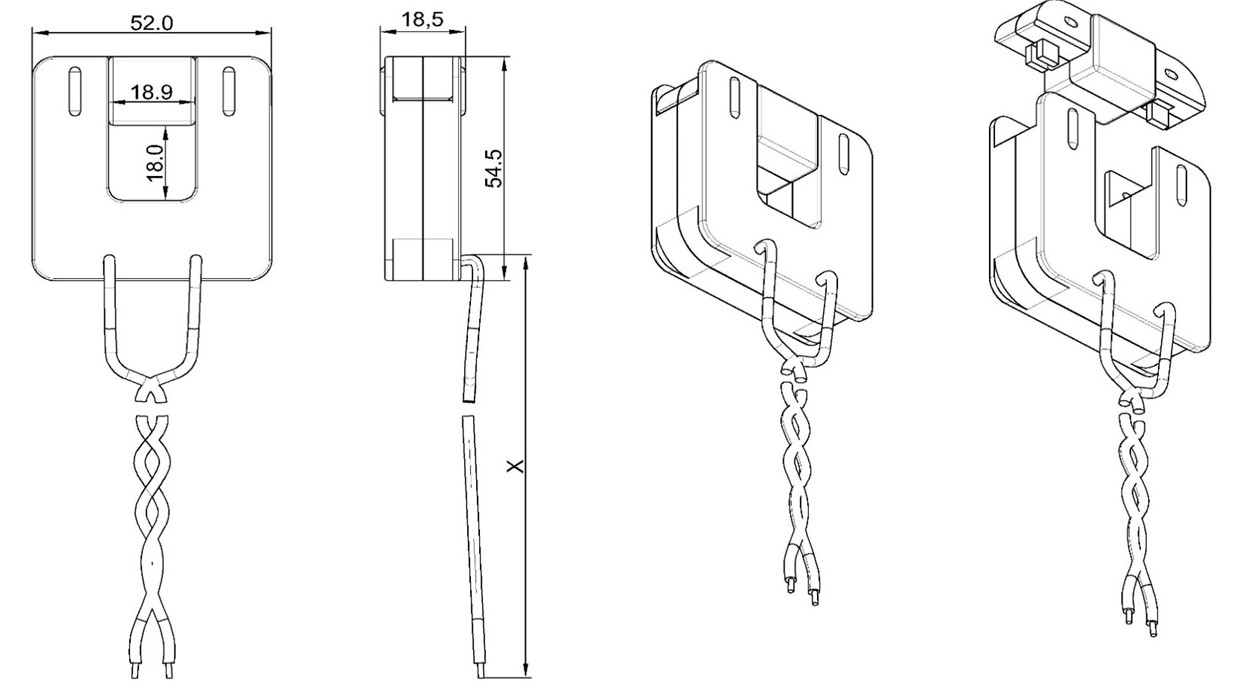

DIMENSIONS( mm )：

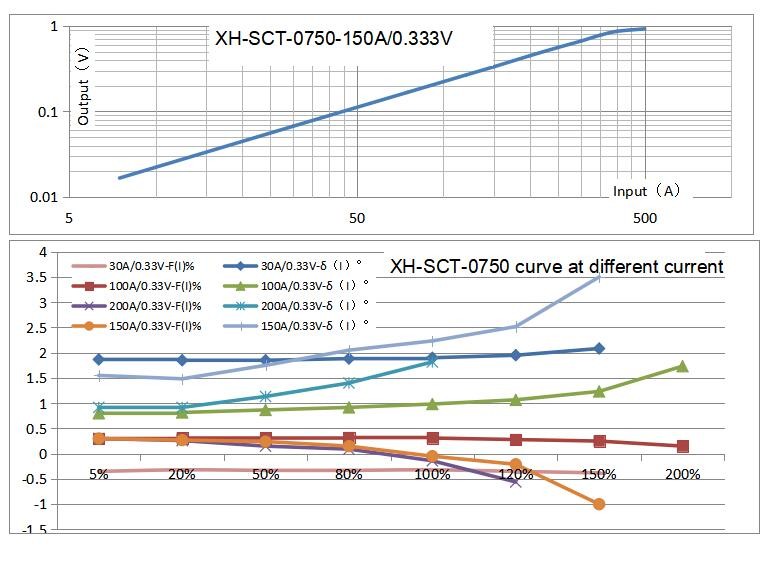

CURVE PERFORMANCE：
