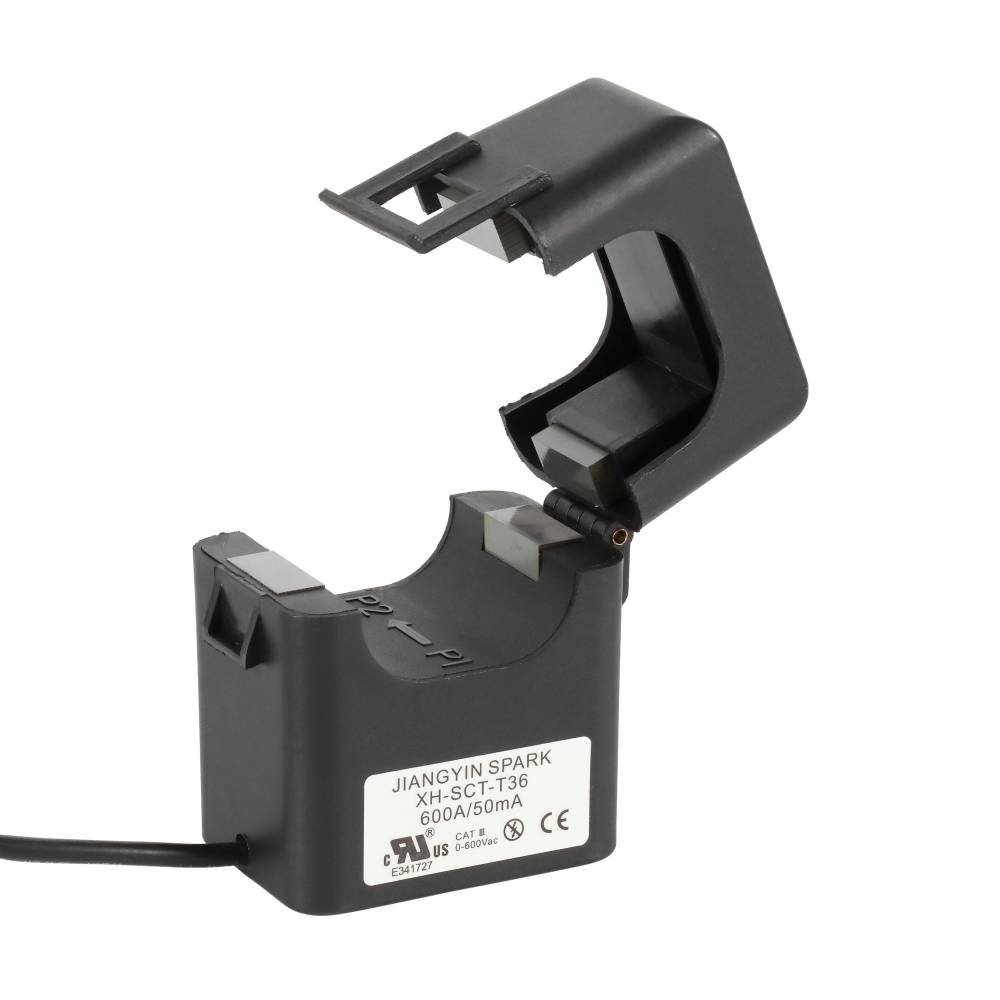

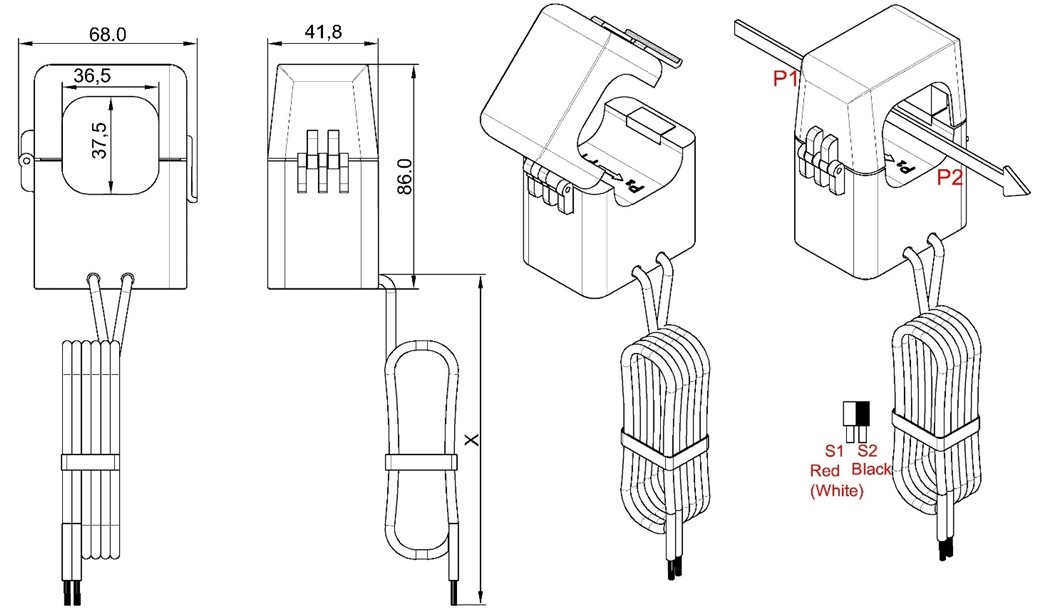

Split core Current Sensor XH-SCT-T36

Split-Core AC Current Sensor XH- SCT-T36

φ36mm Opening With 100 To 600 Amp Rating

Description:

Jiangyin Spark XH-SCT-T36 Series split-core current senses AC current from 100 to 600 Amps passing through the center conductor. Split core CTs are designed for fast and easy installation.The split core design permits non-contact current measurements through magnetic field induction without requiring that the primary wire be taken offline and disconnected for CT installation.This method permits a safer,easy and portable current measurement.

Specifications:

• Maximum continuous primary current 600 A AC

• Current Ratio: 3000: 1

• Output: 0.333 Volt at rated current

• Accuracy: ± 1% from 5% to 120% of rated current

• Insulation Voltage: 600VAC

• Maximum Primary Voltage: 5000VAC(Insulated Conductor)

• Phase angle: Less than 2 degrees at 50% of rated current

• Frequency Range: 50 Hz to 400 Hz

• Operating Temperature: -15Cto 60C.

• Leads: 4Foot(105cm), UL 1015, Twisted Pair, 0.34 mm2(22AWG)

• CE recognized, and RoHS compliant

• Output and leads can be customized

Applications:

• Sub-Metering Accurate Measurement

• Data Loggers to analyze Building & Machinery Performance

• Digital Fault Recorders

• Smart Grid Application Features

• Load Center

• Three Phase Balance Control

• In-Factory Display In-Home Display

• Inverters for Solar & Wind Turbine Systems

• Power Measurement Device For PLC
