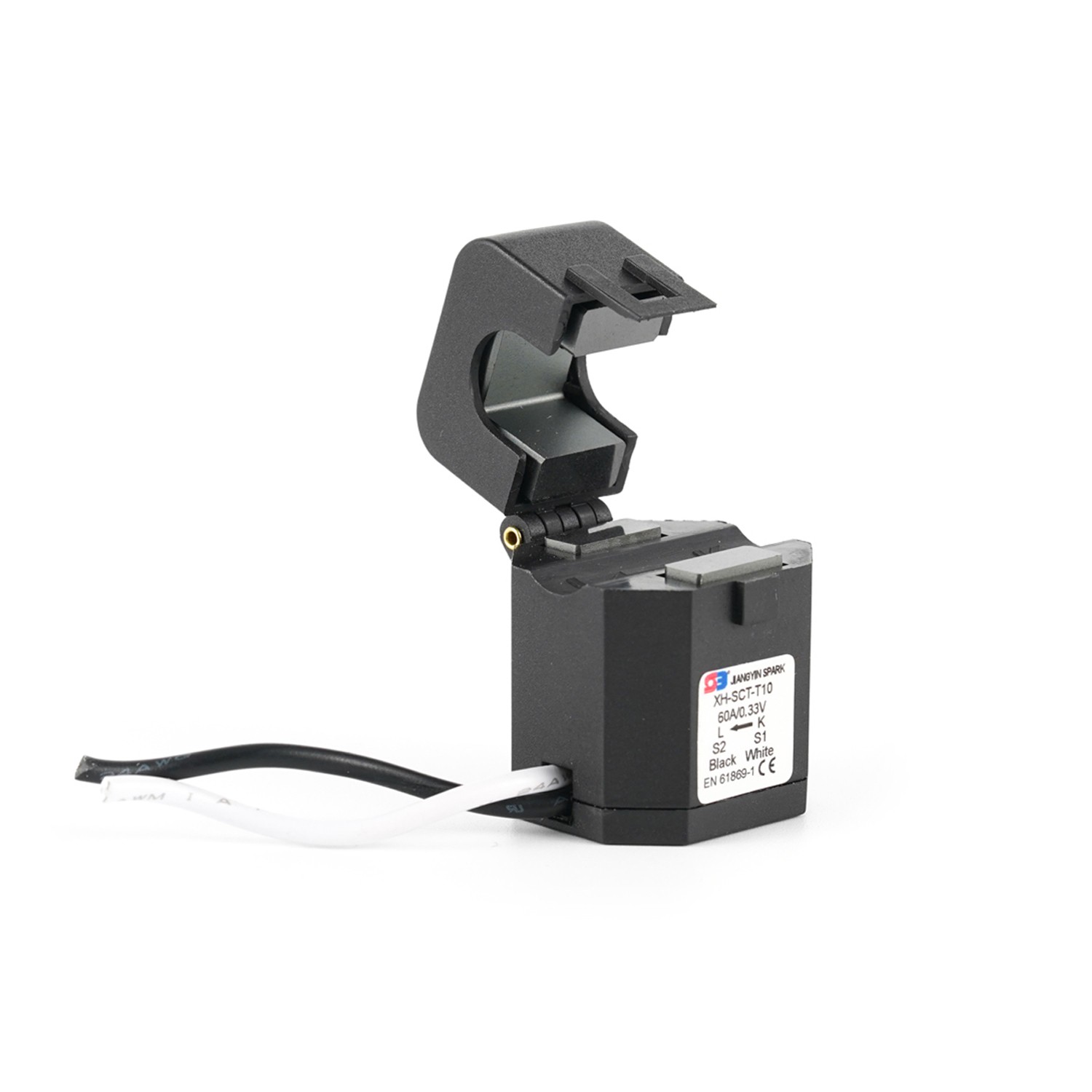

Split Core Current Sensor XH-SCT-T10

Split-Core AC Current Sensor XH- SCT-T10A

φ10mm Opening With 5 To 80 Amp Rating

Description:

Jiangyin Spark XH-SCT-T10 Series split-core current sensors AC current from 5 to 80 Amps passing through the center conductor.Split core CTs are designed for fast and easy installation.The split core design permits non-contact current measurements through magnetic field induction without requiring that the primary wire be taken offline and disconnected for CT installation.This method permits a safer,easy and portable current measurement.

Features:

• Small size, low cost

• High secondary turns

• Secure locking hinge

Specifications:

• Maximum continuous primary current 80 A AC

• Current Ratio: 500:1,1000:1,2000:1,2500:1,3000: 1

• Output: mA or 0.333 Volt at rated current

• Accuracy: ± 1% from 5% to 120% of rated current

• Insulation Voltage: 600Vac

• Maximum Primary Voltage: 5000Vac(Insulated Conductor)

• Phase angle: Less than 2 degrees at 50% of rated current

• Frequency Range: 50 Hz to 400 Hz

• Operating Temperature: -15C to 60C.

• Leads: 4Foot(105cm), UL 1015, Twisted Pair, 0.34 mm2(22AWG)

• CE ,UL recognized, and RoHS compliant

• Output and leads can be customized

Applications:

• Smart energy

• PV monitoring

• Energy storage solutions

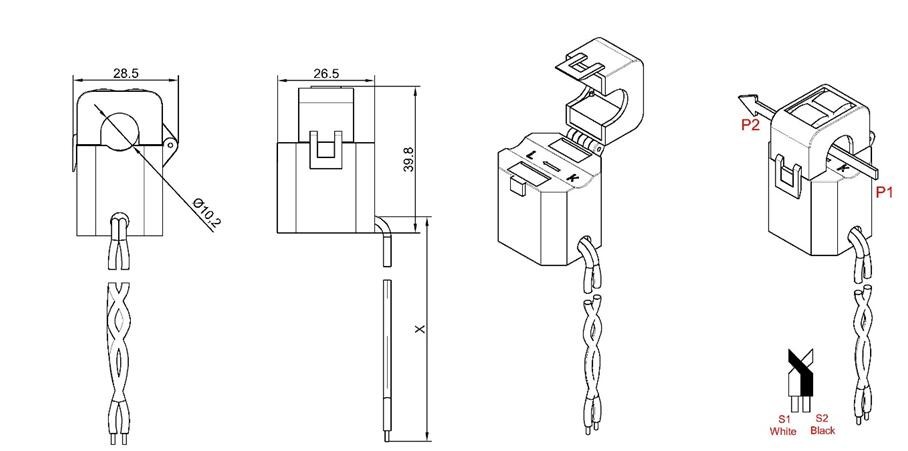

Dimensions(mm):

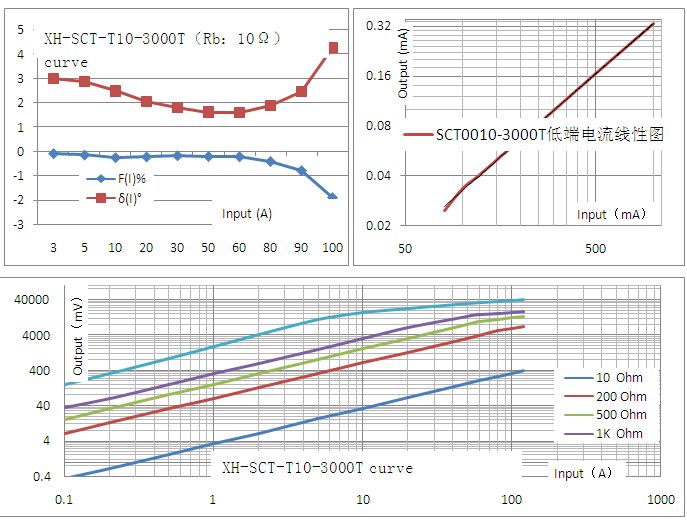

Curve Performance:
