Split Core Current Sensor SCT-T24

Split Core Current Sensor SCT-T24

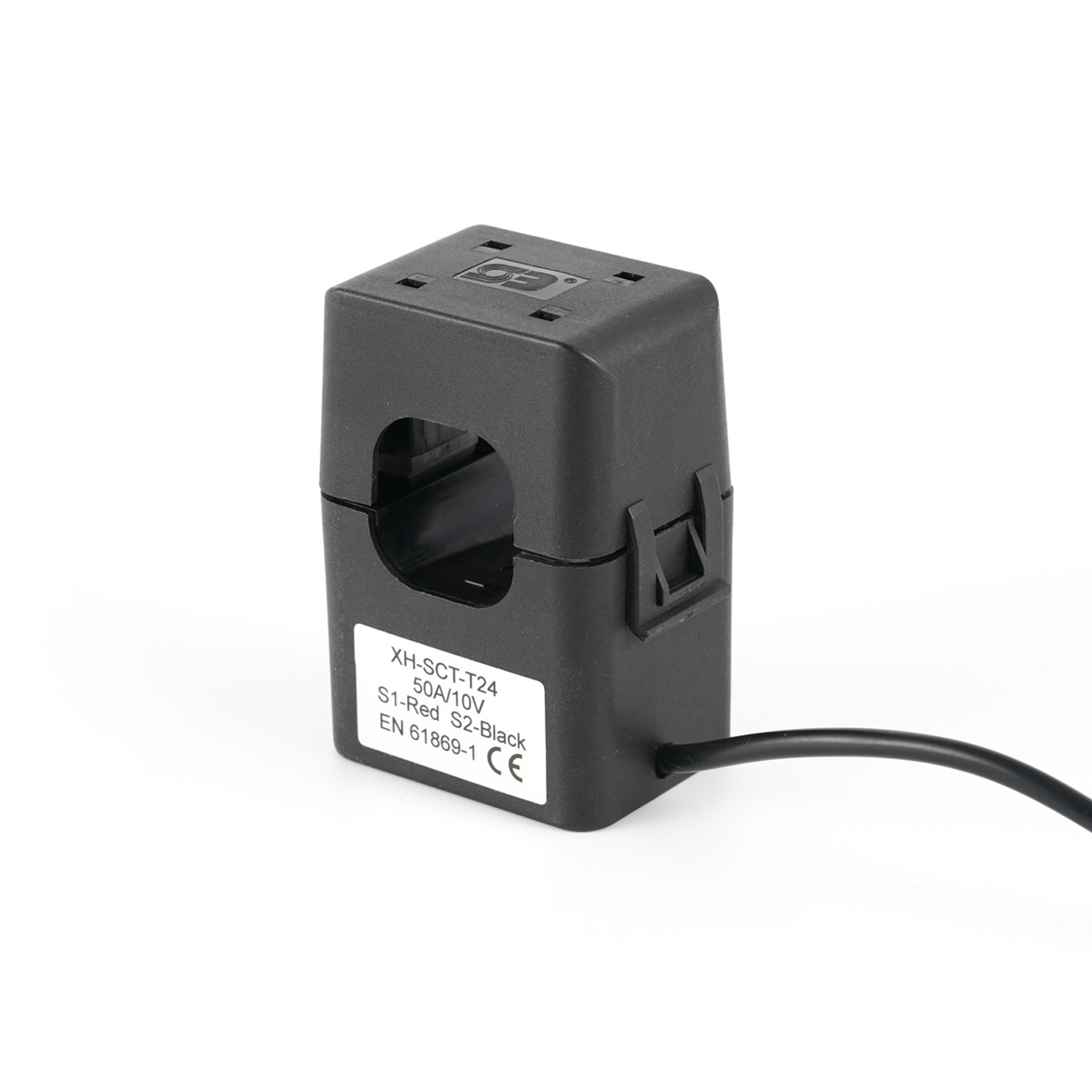

Split-Core AC Current Sensor XH- SCT-T24

φ24mm Opening With 100 To 300 Amp Rating

Description:

Jiangyin Spark XH-SCT-T24 Series split-core current senses AC current from 100 to 300 Amps passing through the center conductor. Split core CTs are designed for fast and easy installation.The split core design permits non-contact current measurements through magnetic field induction without requiring that the primary wire be taken offline and disconnected for CT installation.This method permits a safer,easy and portable current measurement.

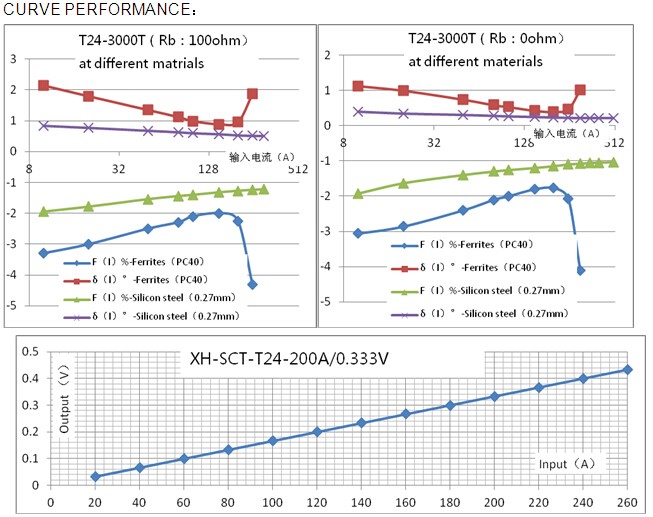

Specifications:

  • Maximum continuous primary current 300 A AC
  • Current Ratio: 3000: 1
  • Output: 0.333 Volt at rated current
  • Accuracy: ± 1% from 5% to 120% of rated current
  • Insulation Voltage: 600VAC
  • Maximum Primary Voltage: 5000VAC(Insulated Conductor)
  • Phase angle: Less than 2 degrees at 50% of rated current
  • Frequency Range: 50 Hz to 400 Hz
  • Operating Temperature: -15Cto 60C.
  • Leads: 4Foot(105cm), UL 1015, Twisted Pair, 0.34 mm2(22AWG)
  • CE recognized, and RoHS compliant
  • Output and leads can be customized

Applications:



  • PV Inverters
  • PV monitoring
  • Energy storage solutions
  • Smart Grid Application Features

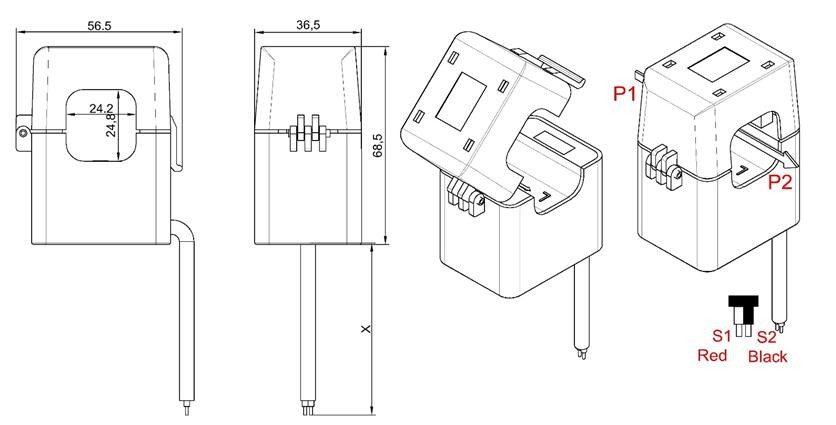

Dimensions:
