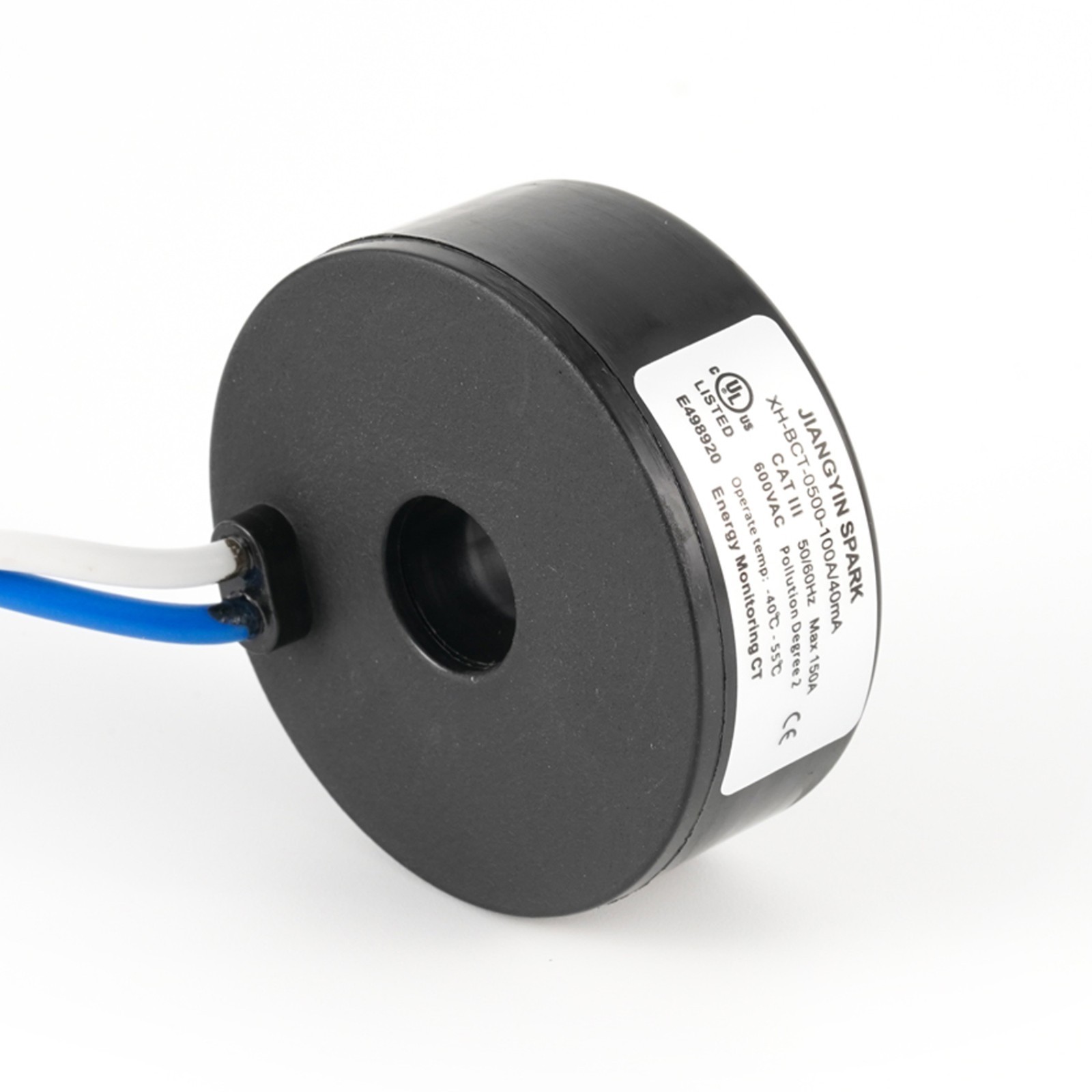

Jiangyin Spark XH-BCT-0500 Solid Core Current Transformer design for better accuracy for 0.333V output Solid core CTs are more accurately , small in size,If mA sendary output ,accuracy can be 0.1%
Specifications:
1. Rated input current from 5A to 600A
2. 0.333V AC or other mA ,mV output at rated current
3. Accuracy ±0.5% or 0.1%
4.Insulation Voltage:5400V, CATIII 600V or CATIV 250V
5.Accuracy at 10% to 130% of rated current
6.Rated Frequency:50HZ or 60HZ;
7.UL2808 ,RoHS Compliant
8.Operating Temperature:-40ºC to +55ºC
9.Flame resistance:UL94-V0;
10.Tensile force value: 9.08 kg(89N) for 1 minutes

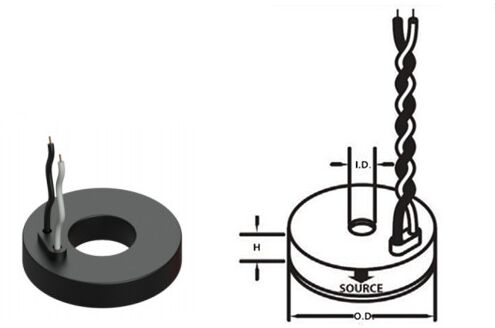

Model | I.D. | Rated Amps | Output |
Outside Diameter |
Height |
XH-BCT-0300 |
0.39 in. 0.76 cm |
1A to 50A | mA or 0-5V output |
1.70 in. 4.32 cm |
0.75 in. 1.91 cm |
XH-BCT-0500 |
0.50 in. 1.27 cm |
5A to 150A | mA or 0-5V output |
1.90 in. 4.83 cm |
0.75 in. 1.91 cm |
XH-BCT-0750 |
0.75 in. 1.91 cm |
10A to 250A | mA or 0-5V output |
2.10 in. 5.33 cm |
0.75 in. 1.91 cm |
XH-BCT-1000 |
1.00 in. 2.54 cm |
50A to 400A | mA or 0-5V output |
2.40 in. 6.10 cm |
0.80 in. 2.03 cm |
XH-BCT-1250 |
1.25 in. 3.18 cm |
50A to 600A | mA or 0-5V output |
2.70 in. 6.86 cm |
0.80 in. 2.03 cm |
