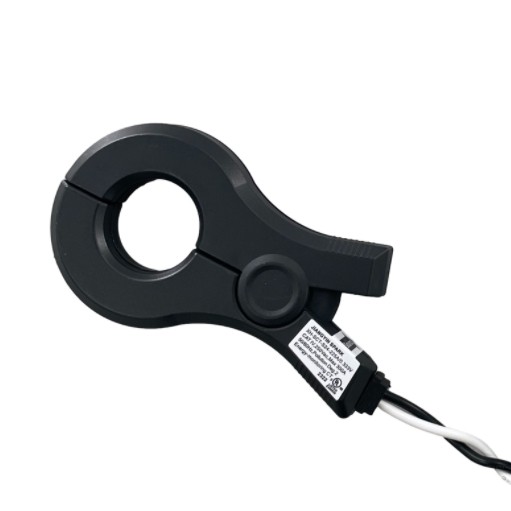

Slim clip on current transformer XH-SCT-S24

Jiangyin Spark XH-SCT-S24 Slim clip on current transformer ,clamp on type , senses AC current from 50 to 300 Amps passing through the center conductor.Slim current transformer are Clamp and split core design ,can make installation with single hand .designed for fast and easy installation.The split core design permits non-contact current measurements through magnetic field induction without requiring that the primary wire be taken offline and disconnected for CT installation.This method permits a safer,easy and portable current measurement.

Smart Grid Application Features
Energy storage solutions,PV Inverters,PV monitoring
In-Factory Display In-Home Display
Inverters for Solar & Wind Turbine Systems
Power Measurement Device For PLC



Model Input current(A) Max cufrrent(A) Output
XH-SCT-S24    0.2-300Aac 320Aac mA/0.333Vac/0-3Vac







                                       XH-SCT-S24

UNITS

ELECTRICAL SPECIFICATION

Accuracy (1% - 100% of rated current)

±0.5

%

CT Phase Angle (5% - 120% of rated current)

0.5 (Ultracrystalline)  / 1.5± 0.5(Silicon iron)

Degrees

Nominal Line Frequency

60 / 50

Hz

Current Rating

0.2 to 300

A

Output Voltage

0 - 333

mVac

Overvoltage

AC 3000V/0.3mA/60S  (50HZ/60HZ)

Vac

Maximum Continuous Amps

300

A

MECHANICAL

Type

Split core, clamp design



Average Window Diameter

24

mm



Lead Wire

Type

Twisted pair

MTW,UL105

Length

17 / 5.2

ft/m

Gauge

20

AWG

Material

Polycarbonate



Weight

190

 g

ENVIRONMENTAL

Operating Temperature Range

 -40 to 60

°C

Operating Humidity

5% to 90% relative humidity



IP Rating

30 (NEMA 1)
