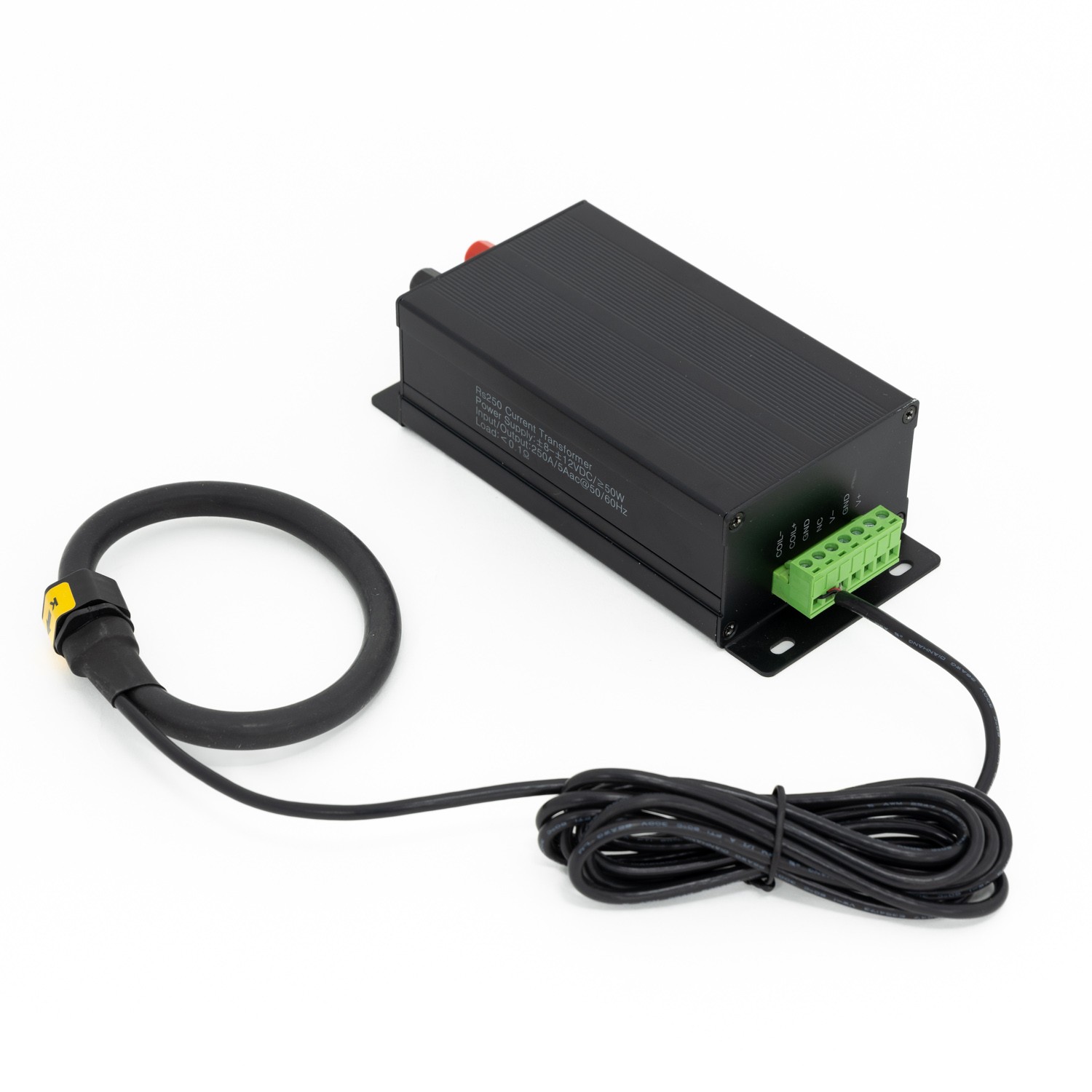

Rogowski coil 5Aac Rated output UL

输入电流范围(AC) Current range(AC)

100-10K

A

测量电流范围 Measure range

5% - 120%

%

工频频率 Power frequency

45-65

Hz

额定输出电流 Rated output

                        5A

Aac

负载（Load）

＜0.1(短路使用Short circuit use)

Ω

电源电压 Supply voltage

±8 - ±12VDC/≥50W

V

功耗电流 Power Consumption

＜100

mA

失调温漂  Offset drift

@ -25～+70℃           ≤±1

mV/℃

精度      Accuracy

≤1

%

线性度    Linearity

                        ≤1

%FS

响应时间  Response time

                        ≤20

ms

绝缘电压  Galvanic isolation

AC,1min                   10

KV

绝缘阻抗 Isolation resistance

@ DC 500V              1000

MΩ

工作温度 (TA) Operating temperature

-25 to +50

℃

认证 Certificates

UL ,CE ,Rohs
