Revenue Grade Split core current transformer

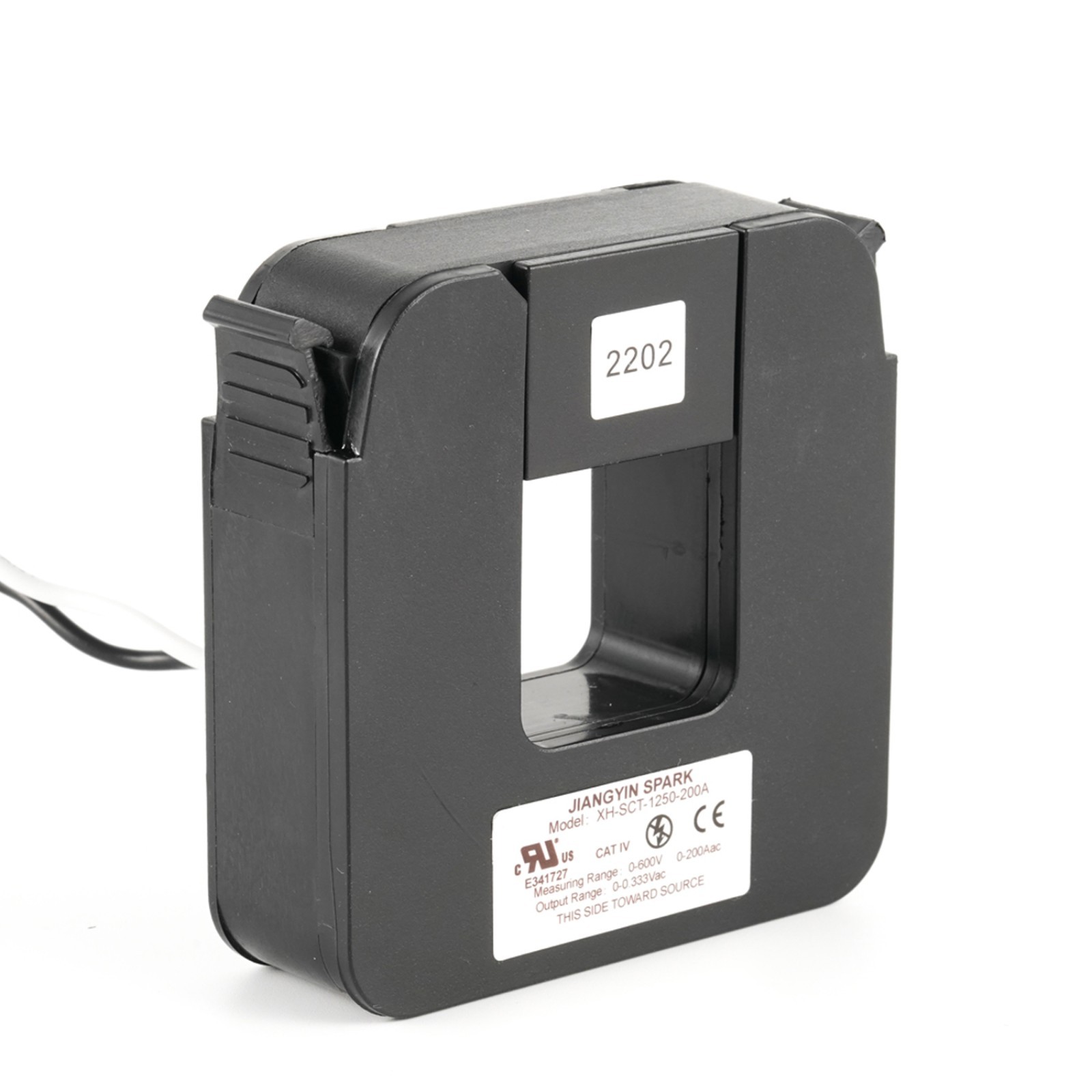

Revenue Grade Split core current transformer XH-SCT ,0.5% Class

Detail
Feedback

The JIANGYIN SPARK series of Revenue Grade split core current transformers are designed for higher accuracy and easy fast installation, Class can be 0.5% ,UL 2808 list for guaranteed safety and quality

Features

Higher accuracy

Split core design;safer,simple installation

Specifications

●Rated Current 50A to 3000A loads.
  ●Rated output: 0.333Vac ,mA ,mV,1A and 5Aac output
   ●Accuracy: ±0.5%
   ●Phase Angle: ±0.5%

●Withstand Voltage:5400Vac/1mA/1min
●Operating Temperature:-30℃to 55℃.

●Frequency Range:50-400Hz
●Leads:2.4M,UL 1015,Twisted Pair
●UL&CE recognized. RoHS Compliant

●Output and leads can be customized

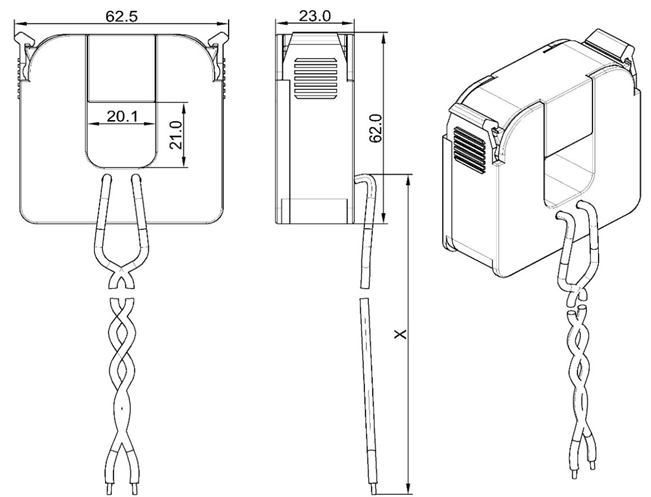

Model	I.D.	Rated Amps	Output	Accuracy	SIZE（mm）
Model	I.D.	Rated Amps	Output	Accuracy	A	B	C	D	E
XH-SCT-0750S	20.1 mm	50A to 300	0.333V	0.5	62.5	62	23	20.1	21
XH-SCT-1250S	32 mm	50A to 600		0.5	85.5	85	26.5	32	32
XH-SCT-2000S	51 mm	100A to 1200		0.5	123.5	127	30.5	51	51
XH-SCT-3000S	76mm x126mm	1000A to 3000		0.5	148.5	202	30.5	76	126
