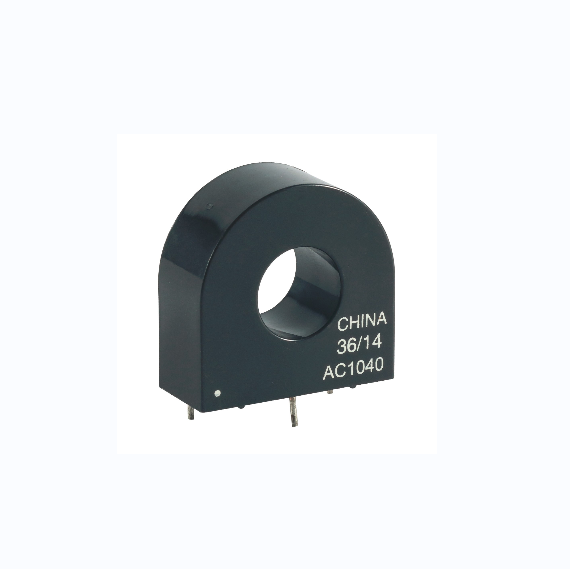

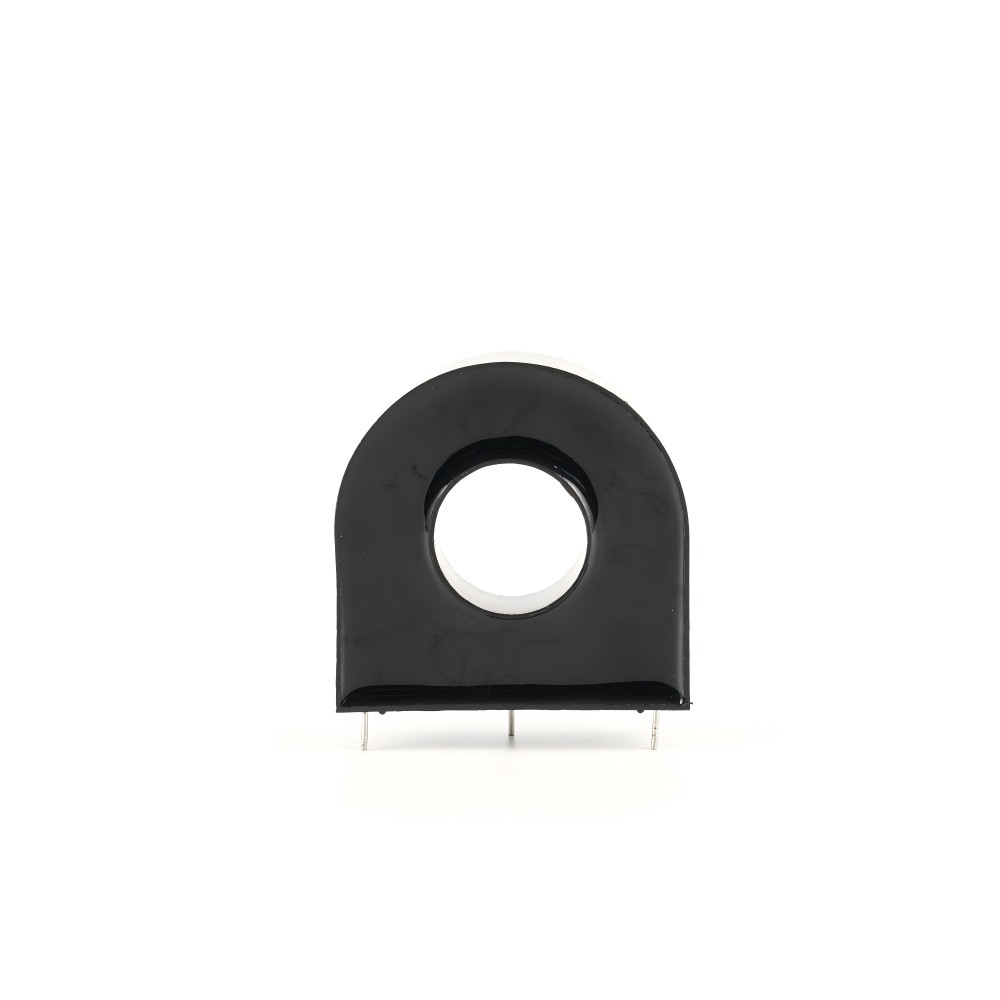

Customized PCB mounting current transformer
PCB current transformers (CTs) are compact, board-mountable components used to measure alternating current (AC) by stepping it down to a safer, manageable level. They are typically soldered directly onto printed circuit boards and provide essential galvanic isolation between high-voltage primary circuits and sensitive low-voltage monitoring electronics
Features
-
Low cost. low profile for PCB mounting
-
High accuracy,wide linear range,low phase shift error
-
Burn-resistant case and filler
Specifications
-
Accuracy Class: 0.1
-
Dielectric strength:2500V/min
-
Dielectric Resistance: 1000M Ohms @ 500 Vdc
-
Working frequency 50-400Hz
-
Ambient temperature:-25℃~+85℃
-
RoHS Compliant
-
CE-approved
-
Customer specifications are available
Application
electronic energy meter, power transducer, precision power meter and other power and energy monitoring devices over current protection circuit of motor and other electrical appliances
|

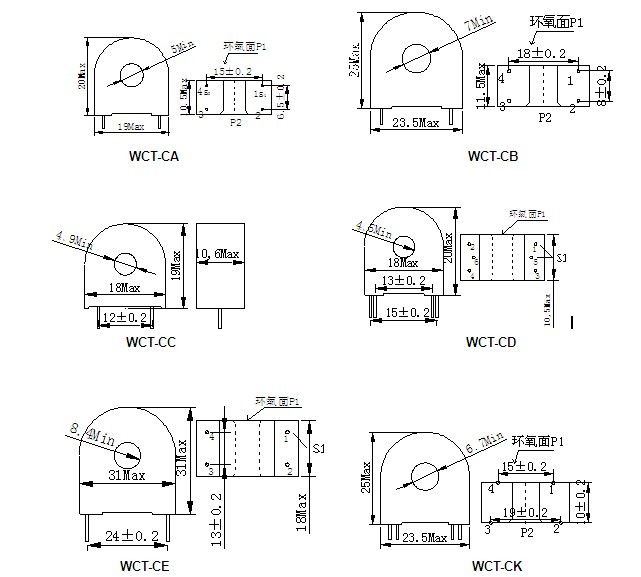

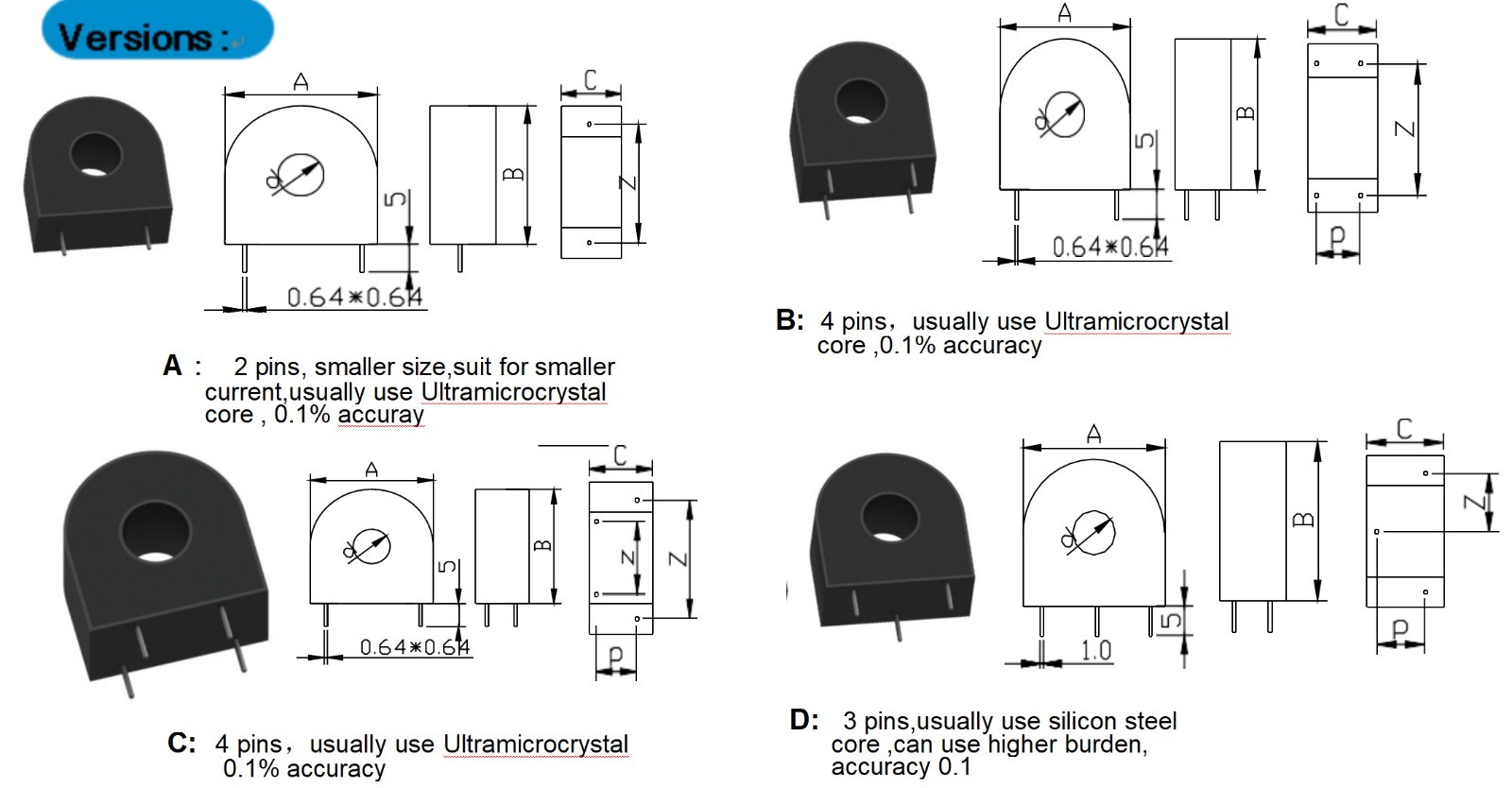

Version
|
Model
|
Rated /Max
|
Suggest Ratio
|
Burden
|
Accuracy
|
Size
|
|
|
|
|
|
|
|
A
|
B
|
C
|
D(ID)
|
Z
|
P
|
|
|
|
A
|
T
|
Ω
|
|
mm
|
mm
|
mm
|
mm
|
mm
|
mm
|
|
A
|
WCTΦ4.5
|
5A ( 20A )
|
1000:1
|
10
|
0.1
|
19.2
|
20
|
11
|
4.5
|
12
|
\
|
|
A
|
WCTΦ5
|
5A ( 20A )
|
1000:1
|
10
|
0.1
|
19
|
18
|
10.5
|
5
|
12
|
\
|
|
B
|
WCTΦ5.6
|
5A ( 20A )
|
1000:1
|
10
|
0.1
|
19
|
20
|
11
|
5.6
|
6.4
|
15.2
|
|
B
|
WCTΦ7
|
5A ( 40A )
|
2500:1
|
20
|
0.1
|
23.7
|
24.5
|
11
|
7
|
15 \ 19
|
10
|
|
B
|
WCTΦ8.9
|
20A(80A)
|
2500:1
|
50
|
0.1
|
26.4
|
28.2
|
17
|
8.9
|
15 \ 19
|
16
|
|
C
|
WCTΦ7.5
|
10A(60A)
|
2500:1
|
20
|
0.1
|
23.5
|
24.5
|
11.2
|
7.5
|
18
|
8
|
|
C
|
WCTΦ13.2
|
30A(90A)
|
2500:1
|
50
|
0.1
|
37.7
|
28.5
|
14
|
13.2
|
24.7 / 33
|
13
|
|
D
|
WCTΦ9.5
|
20A(70A)
|
1000:1
|
100
|
0.1
|
23.8
|
23.8
|
11.1
|
9.5
|
15.24
|
7.62
|
|
D
|
WCTΦ11.4
|
30A(90A)
|
1000:1
|
100
|
0.1
|
30.2
|
30.3
|
14.3
|
11.4
|
20.32
|
10.16
|
|
D
|
WCTΦ14.6
|
30A(150A)
|
1000:1
|
100
|
0.1
|
38.1
|
38.1
|
15.9
|
14.6
|
33
|
10.16
|
|
D
|
WCTΦ19
|
100A(150A)
|
1000:1
|
100
|
0.1
|
44.5
|
44.5
|
14.3
|
19.05
|
35.56
|
10.16
|
|
D
|
WCTΦ23.8
|
150A(200)
|
1000:1
|
100
|
0.1
|
55.6
|
55.6
|
20.6
|
23.8
|
45.72
|
12.7
|
