Outdoor waterproof Split Core Current Transformer

Outdoor waterproof Split Core Current Transformer

Detail
Feedback

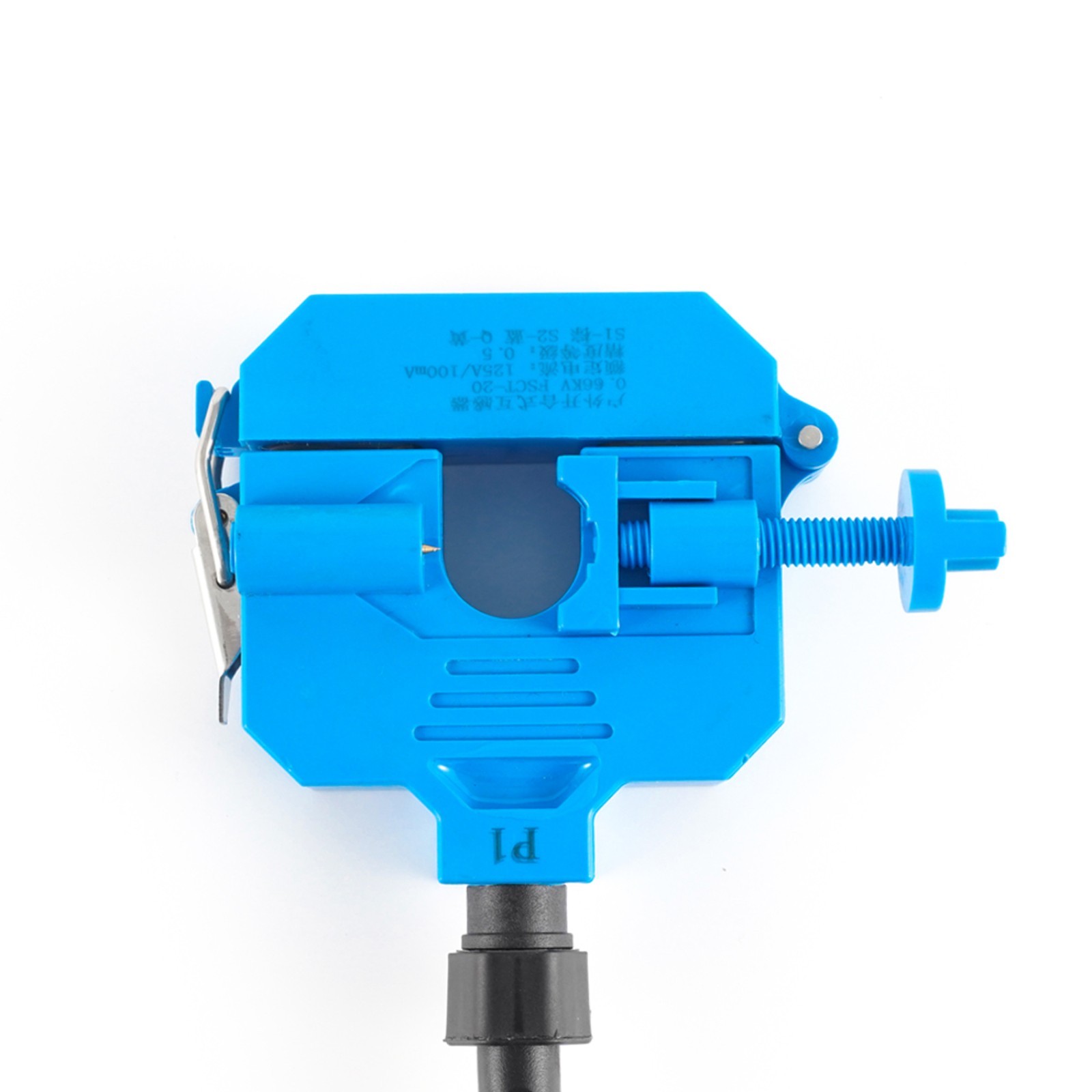

Outdoor Split Core Current Transformer XH- FSCT-20

φ20mm Opening With 10 To 600 Amp Rating

Description:

Jiangyin Spark XH-FSCT-20 is Outdoor Waterproof Split Core Current Transformer

Specifications:

Model	XH-FSCT-20
Inner Diameter	20mm
Rated Primary Current	10-600Amp
Rated secondary output	mA,mV or 1A
Max Current	1000Arms
IP class	IP 57
Turns	100-3000T
Accuracy Class	0.5 , 1.0
Insulation strength	3KVVAC/min
Insulation impedance	DC500V/100MΩ
Rated frequency	50-400HZ
Standards	GB 20840 (IEC 61869), GB4208
Work voltage	0.66/0.72KV
Working temperature	-25℃~50℃
Storage temperature	-30℃~90℃
