IP67 outdoor split core current transformer 40mm

IP 67 waterproof ourdoor split core current transformer XH-FSCT-T40

Quote Now

Detail
Feedback

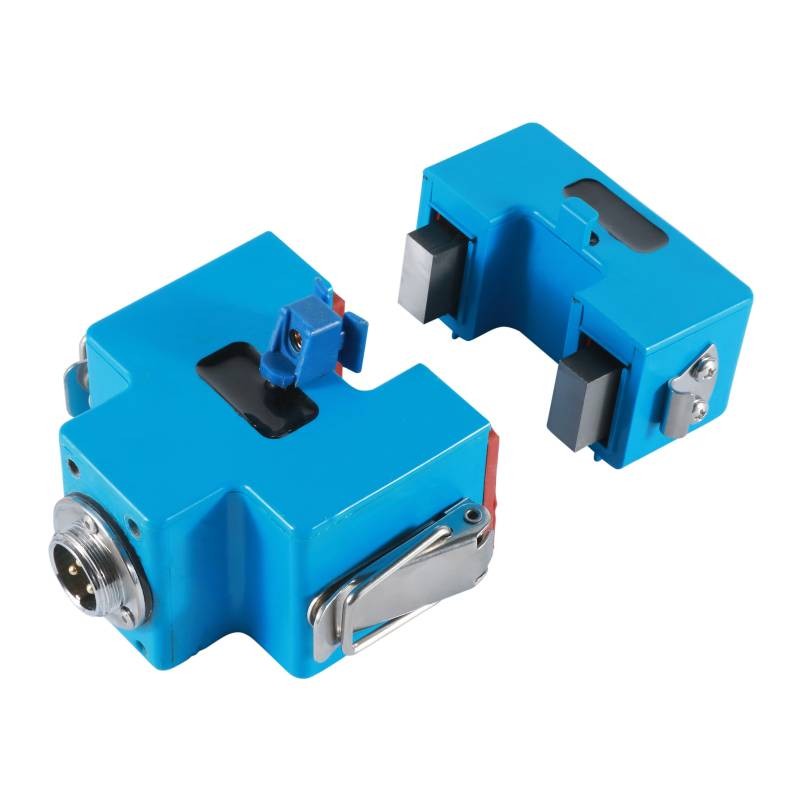

XH-FSCT-T40 Waterproof Split Core Current Transformer with Clip

XH-FSCT-T40 IP67 Waterproof split core current transformer is built with silicone steel core and is potted for outdoor use. In addition, it is designed for easy installation on ground potential conductors.

Specification

Window size : 40 x 40mm

IP rating: IP67

Rated Secondary Current: 5A ,1A,mA,mV,V

Accuracy: 0.5%, 1%

Operating temperature: -40℃~ 70℃;

Standards: GB20840; IEC 61869

Safety Factor Rating :< 10

Rated Frequency: 50Hz or 60Hz

Environment: Outdoor

Usage: Measurement

Insulating Medium: Common Insulating Materials

Secondary Winding Power Frequency Withst: 3kv/1min

Certificates:CE ,Rohs

Operating humidity: ≤95%

Model	XH-FSCT-T40
Inner Diameter	40 x 40 mm;
Rated Primary Current	10-800Amp
Rated secondary output	1A ,5A,mA ,mV,V
Burden	1.5VA-5VA
IP class	IP 67
Accuracy Class	0.5S , 1.0
Insulation strength	3KV/1mA/1Min;
Rated frequency	50/60HZ
Work voltage	0.66/0.72KV
Working temperature	-40℃~70℃
Cable wire lead	2x2.5mm² sheathed wire
Weight	2200g
