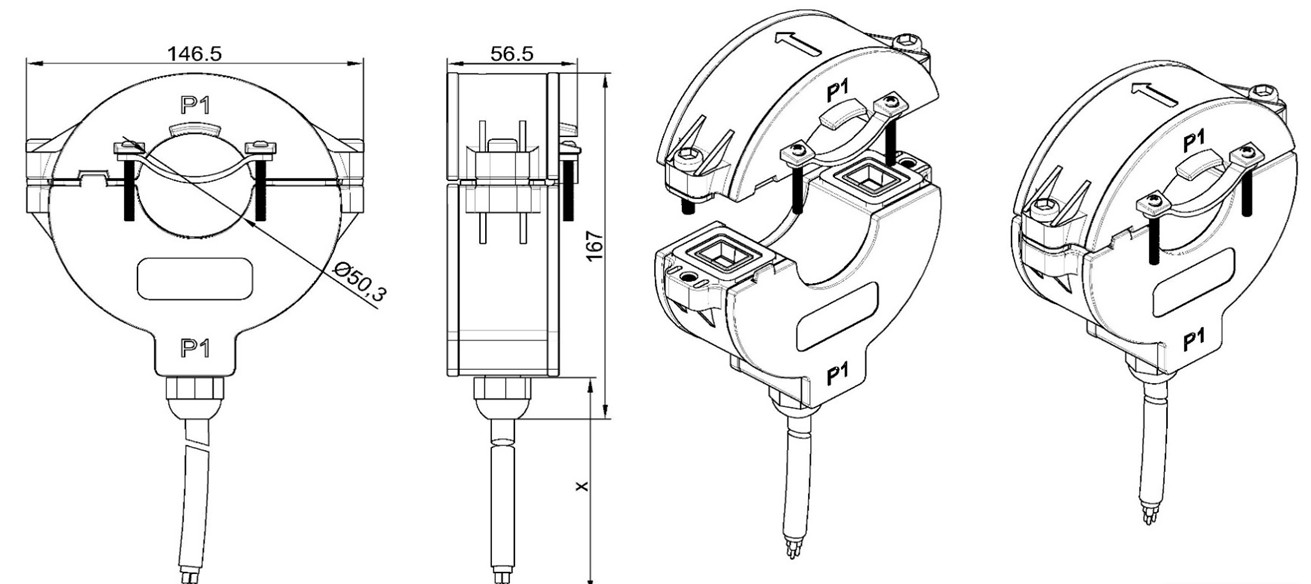

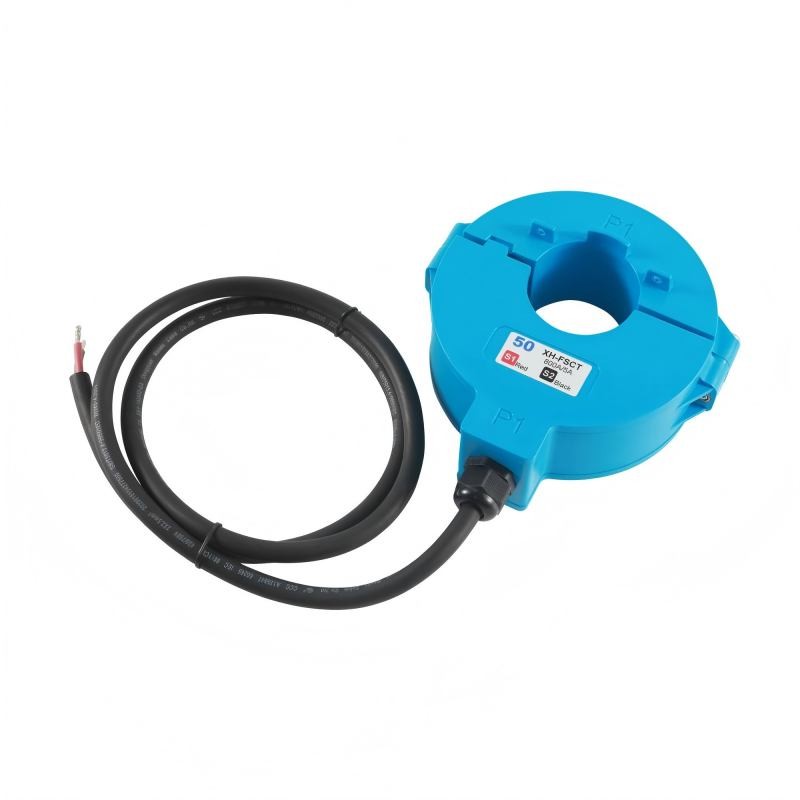

FSCT-50 IP67 outdoor split core current transformer

Jiangyin Spark XH-FSCT-T50 is IP67 Outdoor Waterproof Split Core Current Transformer

Applicable cable specifications: 50 mm;

Applicable primary current: 100-1500A;

Applicable secondary current: 5A/1A ,mA,V

Voltage level: 0.66/0.72KV;

Withstand voltage level: 3KV/1mA/1Min;

Rated frequency: 50/60HZ;

Operating temperature: -40℃~ 70℃;

Operating humidity: ≤95%;

Protection standard: GB/T 4208-2017: IP67

Exclusive standard: GB/T 20840.1-2010, 20840.2-2014；IEC 61869-1: 2009, IEC 61869-1: 2012;

CE certification: Compliant with EN 61869-1 and EN 61869-2 for low voltage directive;

Compliant with EN 61000-6-3 and EN IEC 61000-6-1 electromagnetic compatibility.
