FSCT-36 IP67 outdoor split core current transformer

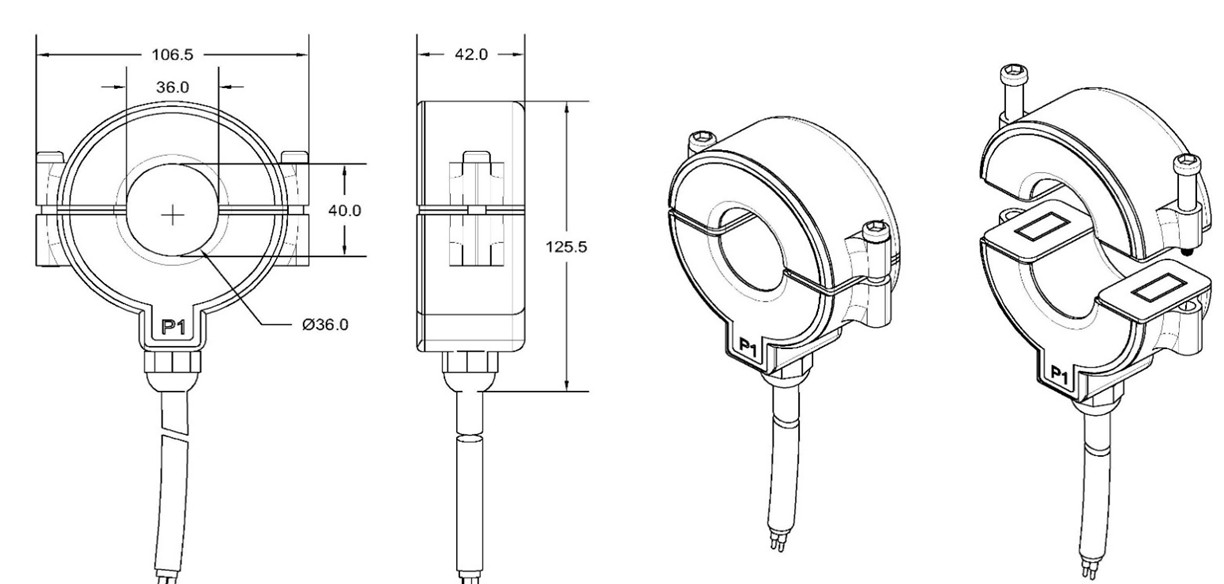

FSCT-36 Waterproof Split Core Current Transformer

FSCT-36 Waterproof current transformer is built with silicone steel core and is potted for outdoor use. In addition, it is designed for easy installation on ground potential conductors.

Specification

Window size : 36 mm

Operation Condition: Outdoor

Usage: Measurement

Insulating Medium: Common Insulating Materials

Accuracy: 0.5-1%

Standards: GB20840; IEC 61869

Safety Factor Rating :< 10

Rated Frequency: 50Hz or 60Hz

Environment: Outdoor

Rated Secondary Current: 5A or 1A,mA,mV

Secondary Winding Power Frequency Withst: 3kv/1min

Certificates:Waterproof certificate

Phase: Single

Export Markets: Global
