FSCT-30 IP67 outdoor split core current transformer

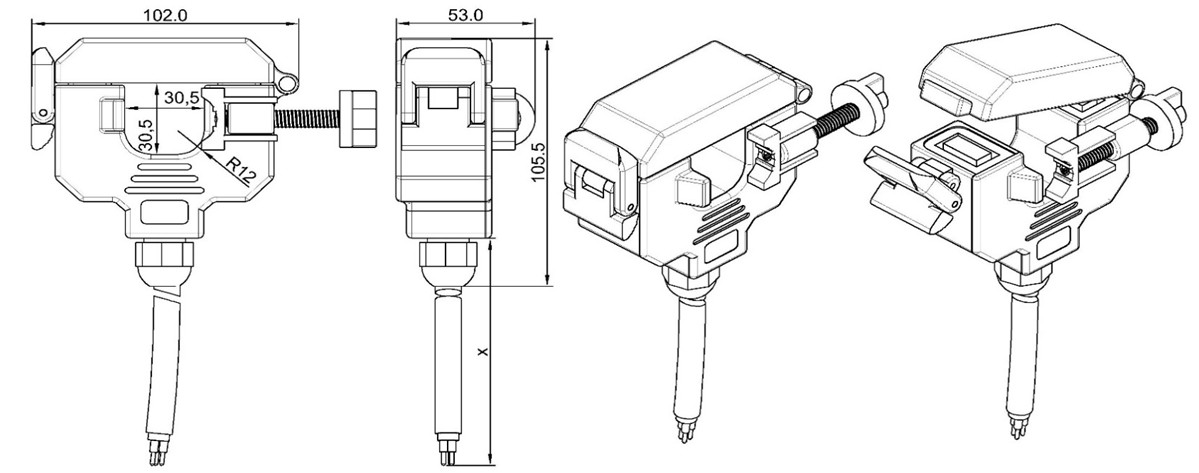

XH-FSCT-T30 Waterproof Split Core Current Transformer

XH-FSCT-T30 IP67 Waterproof split core current transformer is built with silicone steel core and is potted for outdoor use. In addition, it is designed for easy installation on ground potential conductors.

Specification

Window size : 30 mm

IP rating: IP67

Rated Secondary Current: 5A or 1A

Accuracy: 0.5%, 1%

Operating temperature: -40℃~ 70℃;

Standards: GB20840; IEC 61869

Safety Factor Rating :< 10

Rated Frequency: 50Hz or 60Hz

Environment: Outdoor

Usage: Measurement

Insulating Medium: Common Insulating Materials

Secondary Winding Power Frequency Withst: 3kv/1min

Certificates:CE ,Rohs

Operating humidity: ≤95%
