FSCT-20 IP67 Outdoor Split Core Current Transformer

FSCT-20 IP67 Outdoor Split Core Current Transformer

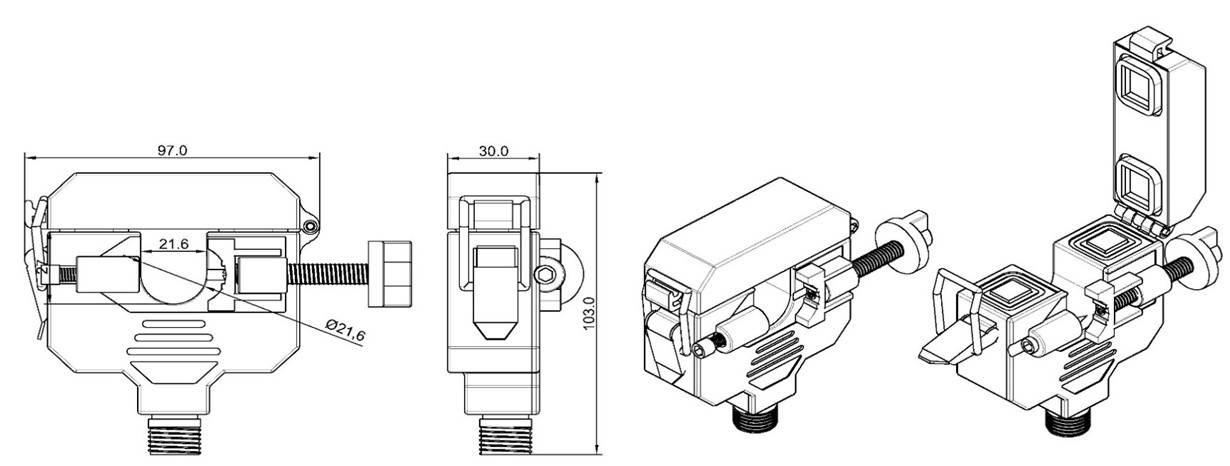

Outdoor Split Core Current Transformer XH- FSCT-20

φ20mm Opening With 10 To 600 Amp Rating

Description:

Jiangyin Spark XH-FSCT-20 is Outdoor Waterproof Split Core Current Transformer

Specifications:

Model

XH-FSCT-20

Inner Diameter

20mm

Rated Primary Current

10-600Amp

Rated secondary output

mA,mV or 1A

Max Current

1000Arms

IP class

IP 57

Turns

100-3000T

Accuracy Class

0.5 , 1.0

Insulation strength

3KVVAC/min

Insulation impedance

DC500V/100MΩ

Rated frequency

50-400HZ

Standards

GB 20840 (IEC 61869), GB4208

Work voltage

0.66/0.72KV

Working temperature

-25℃~50℃

Storage temperature

-30℃~90℃
