Flexible Rogowski Coil 1000A/100mV

Flexible Rogowski Coil 1000A/100mV

Flexible Rogowski Coil 1000A/100mV

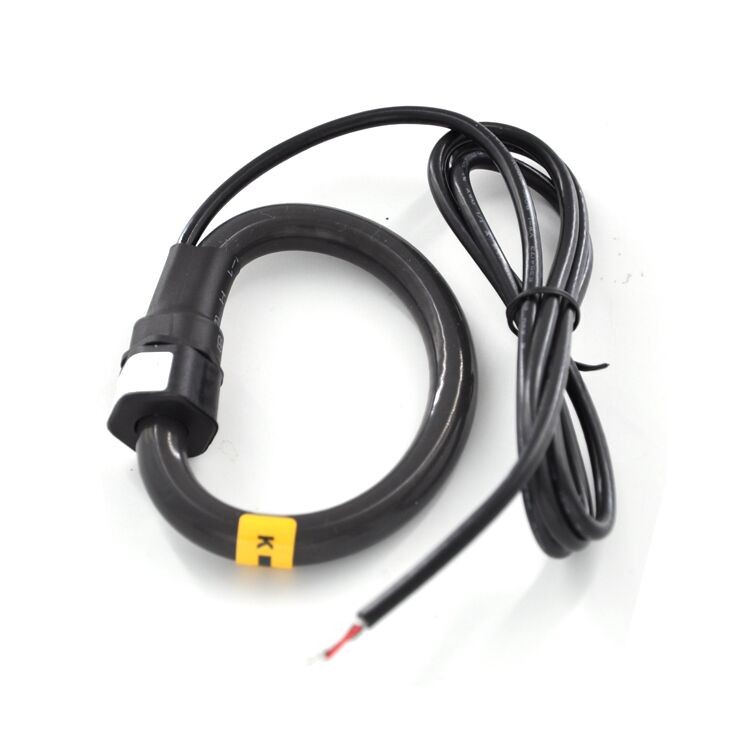

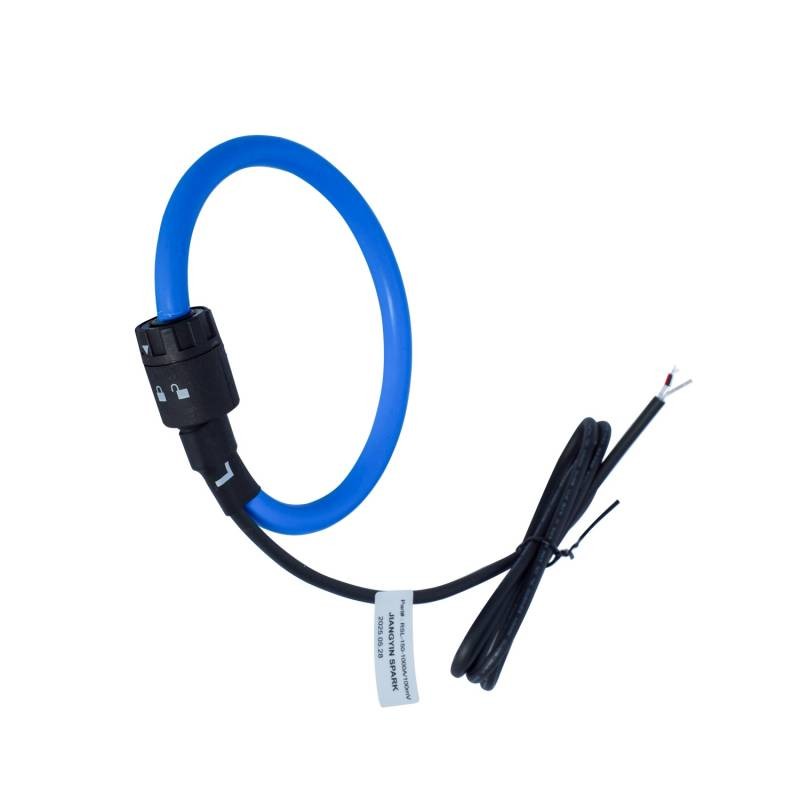

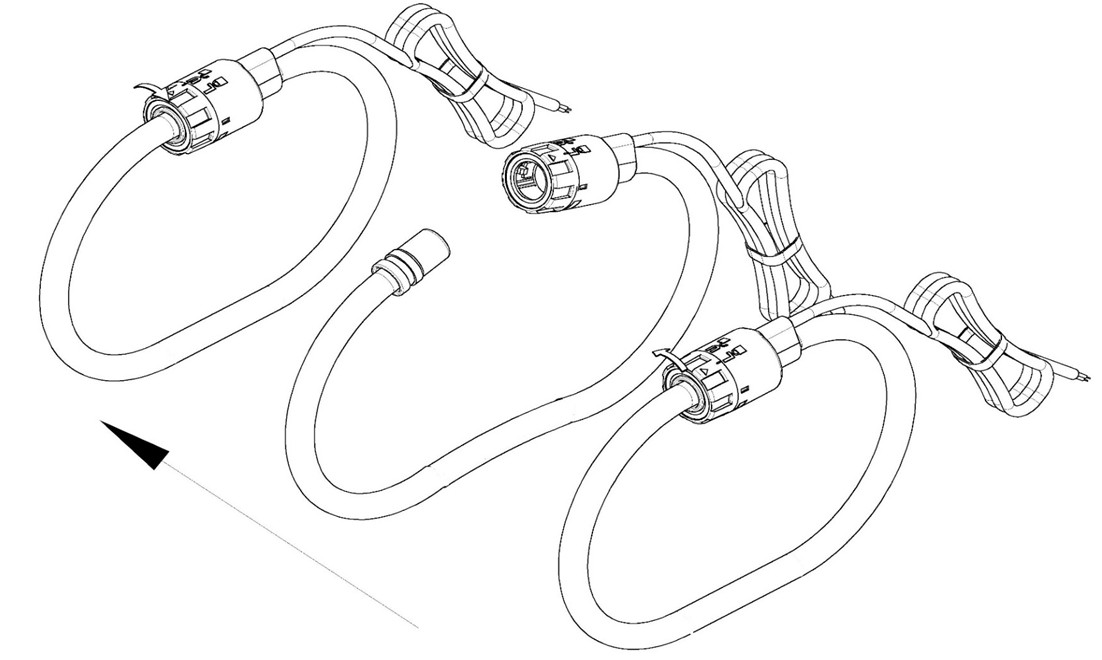

Jiangyin Spark FCT rogowski coil is flexible, like rope ,it is designed to use where solid or split core current transformers cannot fit Advantage including high accuracy, wide measurement and frequency range and very light weight.The probes comprise a flexible air–cored sensor which can be opened, allowing them to be installed around a primary conductor without interrupting the circuit. The flexible and lightweight measuring head allows quick and easy installation in hard to reach areas and with large conductors.

Key specifications

Specifications:

  • Current Range: 10A to 10kA
  • Rated output: 0.333Vac at rated current with Integrator,100mV per 1000A without integrator@50Hz
  • Accuracy:±1% from 5% to 120% of rated current with integrator(45-65Hz)
  • Phase Angle: ≤±1°5% to 120% from 5% to 120% of rated current
  • Linear: 0.5%
  • Frequency: 1Hz-1MHz ,50/60 Hz nominal
  • Work Voltage: 600V
  • Power supply: 7-30VDC (9 Vdc,12 Vdc recommended )

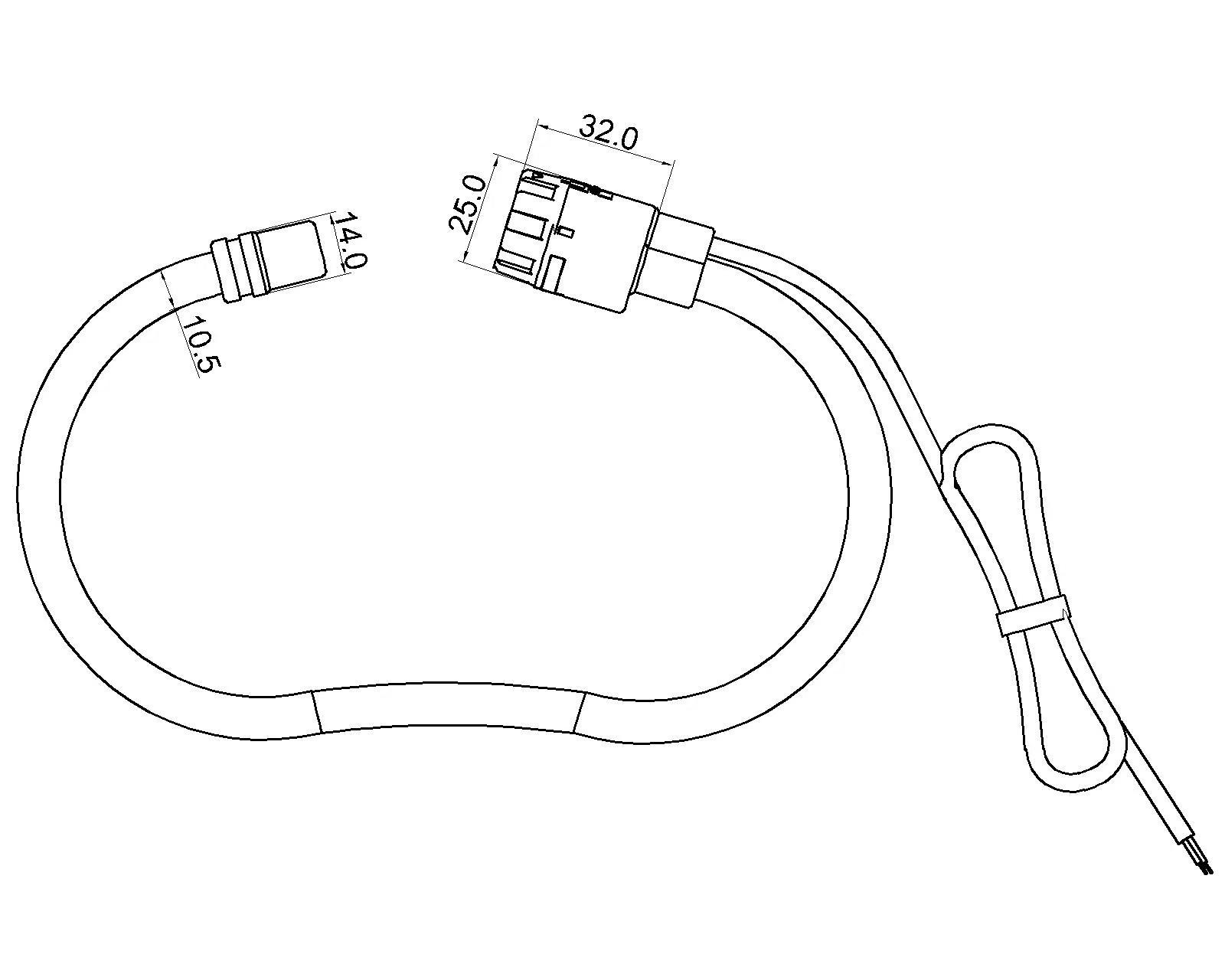

  • Coil Diameter: 10.5mm,12mm or as customer order
  • Window size: 10mm,15mm or as per customer ordered
  • Wire lead: 1 meter sheath cable or as customers order
  • Withstand Voltage:3000V
  • Operating temperature: -25℃-+70℃
  • IP class : IP65
  • CE recognized. RoHS Compliant



Rated current (rms)

10A-100KA

Output

1V/10000A (without integrator)

100mV/1000A (without integrator)

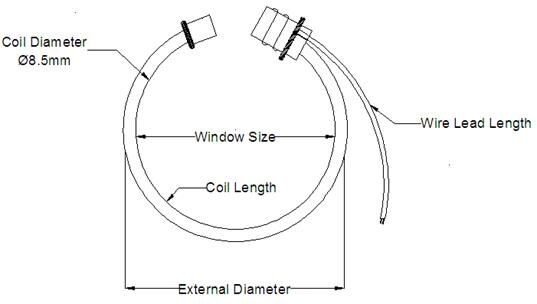

Coil length

200mm-2000mm

Window size

60mm-630mm

Tube

UL material

Wire lead

UL 21233

Isolation voltage

7400V

Operating temperature

-25℃-+70℃

Frequency

50Hz-60Hz

Accuracy

±1%
