DC split core XH-DCT16 with 4-20mA

DC split core XH-DCT16 with 4-20mA

Split core DC current sensor 4-20mA DC secondary

Specifications :
Input current: 50-600A AC
Output Signal: 4-20mA DC
Measurement Accuracy: +/- 2%
Linearity: +/- 2%
Temperature drift: <5%
Auxiliary power supply: DC15-24V
Maximum Output Signal: 4-20mA
Operating Temperature: -30° C to +65° C
Storage Temperature: -40° C to +85° C
Operating Humidity: 10 to 95 %RH non-condensing
Storage Humidity: 10 to 95 %RH non-condensing

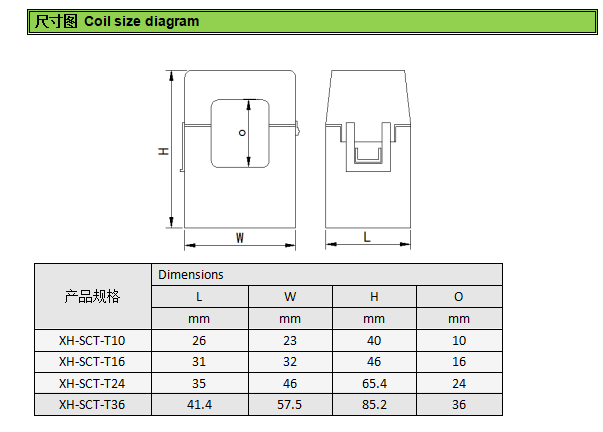

Current range(AC) DC-T10 DC-T16 DC-T24 DC-T36 DC-T50 A
5-80 10-120 10-300 10-500 10-1000
 Measure range 1% - 100% %
 Power frequency 45-65 Hz

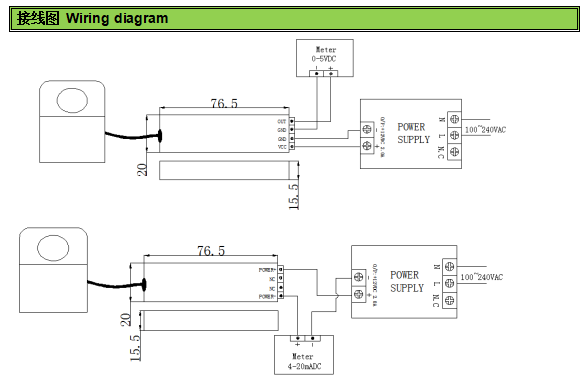

Output 0-5VDC 0-10VDC 4-20mADC Ω
Load ≥100K ≥100K ≤500
Supply voltage 12/24V V
Power Consumption <40 mA
Offset drift @ -25~+70ºC           ≤±1 mV/ºC
Accuracy ≤1 %
Linearity                         ≤1 %FS
Response time                         ≤20 ms
Galvanic isolation AC,1min                 10 KV
Isolation resistance @ DC 500V              1000 MΩ
