4-20mA CT16 split core current transformer

4-20mA CT16 split core current transformer

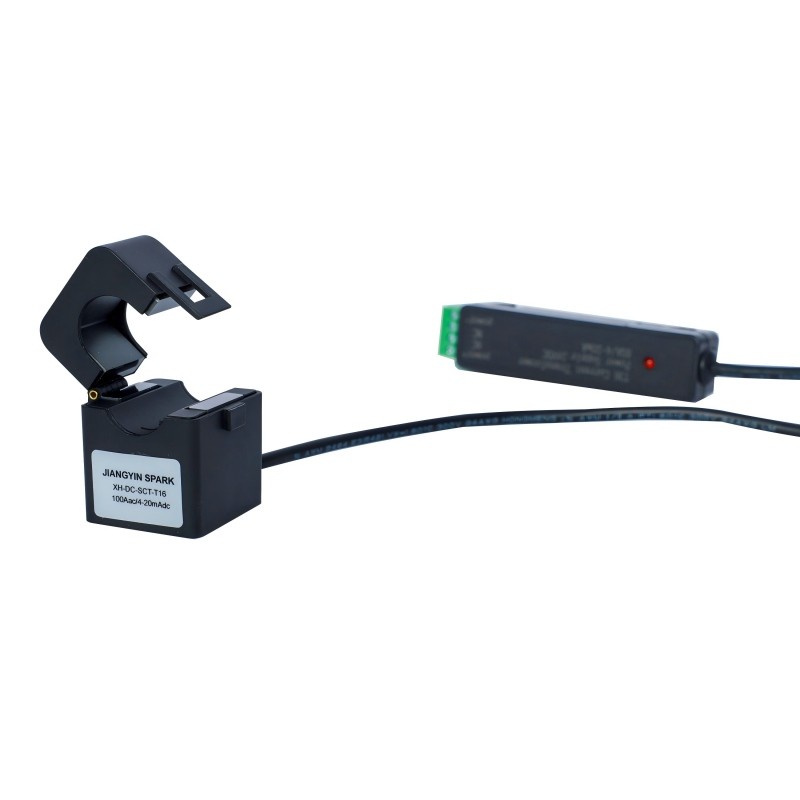

Jiangyin Spark  DC-T16 split core current transformer,converts AC current signals into standard DC signals, like 4-20mA dc , 0-5V dc output .Clip open type ,These CTs can be mounted without removing existing cables for easier installation.It features high accuracy, compact size, low power consumption, and strong anti-interference capability. It is especially suitable for intelligent monitoring systems of load currents in applications such as motors, smart low-voltage distribution cabinets, and PLC automation.



Split core DC-T16 current sensor 4-20mA dc / 0-5V dc secondary

Specifications :
Input current: 0-120A ac
Output Signal: 4-20mA dc , 0-5V dc
Measurement Accuracy: +/- 2%
Linearity: +/- 2%
Temperature drift: <5%
Auxiliary power supply: 15-24V dc
Maximum Output Signal: 4-20mA
Operating Temperature: -30° C to +65° C
Storage Temperature: -40° C to +85° C
Operating Humidity: 10 to 95 %RH non-condensing
Storage Humidity: 10 to 95 %RH non-condensing



Current range(AC) DC-T10 DC-T16 DC-T24 DC-T36 DC-T50 A
5-80 10-120 10-300 10-500 10-1000
 Measure range 1% - 100% %
 Power frequency 45-65 Hz Hz
Output 0-5V dc 0-10V dc 4-20mA dc Ω
Load ≥100K ≥100K ≤500
Supply voltage 12/24V V
Power Consumption <40 mA mA
Offset drift @ -25~+70ºC           ≤±1 mV/ºC
Accuracy ≤1 %
Linearity                         ≤1 %FS
Response time                         ≤20 ms
Galvanic isolation AC,1min                 10 KV
Isolation resistance @ DC 500V              1000 MΩ
