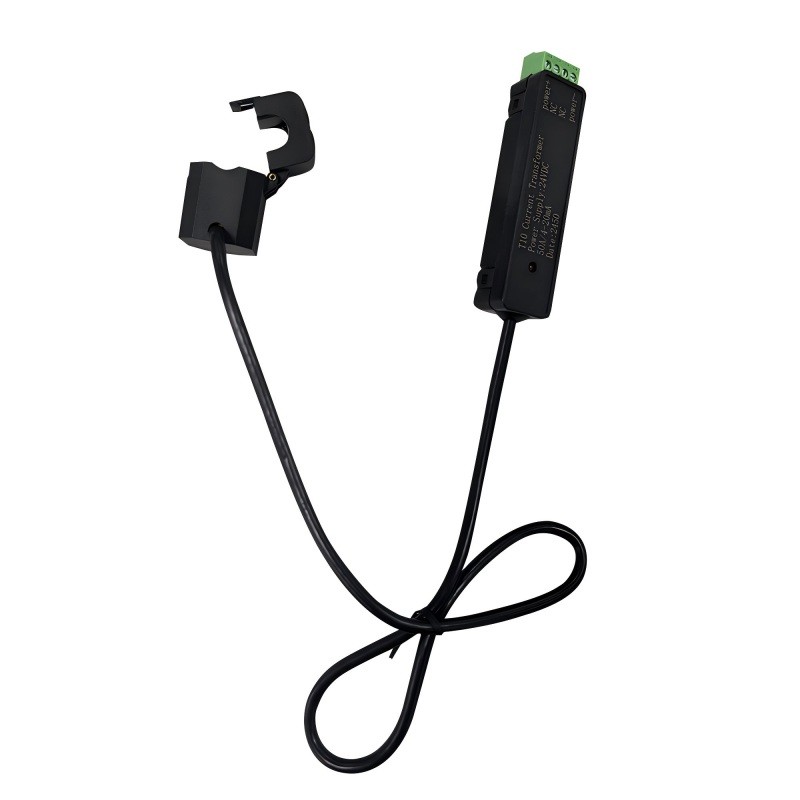

4-20mA CT10 split core current transformer

Jiangyin Spark T10 split core current transformer , converts AC current signals into standard DC signals, like 4-20mA dc , 0-5V dc output .Clip open type ,These CTs can be mounted without removing existing cables for easier installation.It features high accuracy, compact size, low power consumption, and strong anti-interference capability. It is especially suitable for intelligent monitoring systems of load currents in applications such as motors, smart low-voltage distribution cabinets, and PLC automation.

Split core DC-T10 current sensor 4-20mA dc / 0-5V dc secondary

Specifications :
Input current: 0-80A ac
Output Signal: 4-20mA dc , 0-5V dc
Measurement Accuracy: +/- 2%
Linearity: +/- 2%
Temperature drift: <5%
Auxiliary power supply: 15-24V dc
Maximum Output Signal: 4-20mA
Operating Temperature: -30° C to +65° C
Storage Temperature: -40° C to +85° C
Operating Humidity: 10 to 95 %RH non-condensing
Storage Humidity: 10 to 95 %RH non-condensing
