Split Core Current Sensor SCT-T16

Split Core Current Sensor SCT-T16

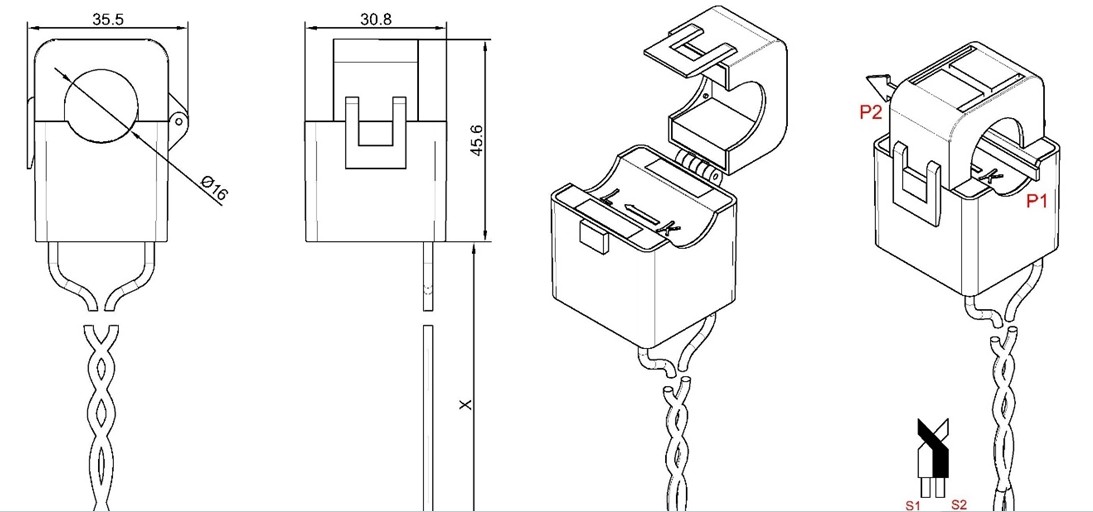

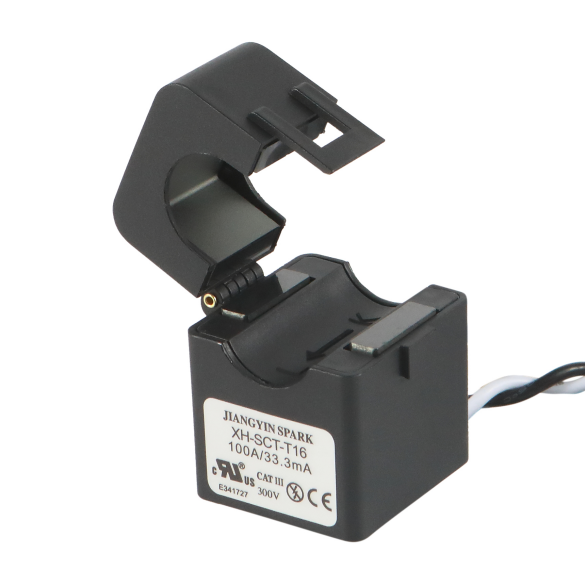

Split-Core AC Current Sensor XH- SCT-T16

φ16mm Opening With 50 To 120 Amp Rating

Description:

Jiangyin Spark XH-SCT-T16 Series split-core current senses AC current from 50 to 120 Amps passing through the center conductor.Split core CTs are designed for fast and easy installation.The split core design permits non-contact current measurements through magnetic field induction without requiring that the primary wire be taken offline and disconnected for CT installation.This method permits a safer,easy and portable current measurement.

Features:

  • Maximum continuous primary current 120 A AC
  • Output: mA or 0.333 Volt at rated current
  • Current Ratio: 500:1,1000:1,2000:1,2500:1,3000: 1
  • Maximum Primary Voltage: 5000Vac(Insulated Conductor)
  • Phase angle: Less than 1.5 degrees at rated current
  • Frequency Range: 50 Hz to 400 Hz
  • Accuracy: ± 1% from 5% to 120% of rated current
  • Operating Temperature: -15 Cto 60 C.
  • Insulation Voltage: 600Vac
  • Leads: 4Foot(105cm), UL 1015, Twisted Pair, 24AWG
  • CE ,ETL recognized, and RoHS compliant
  • Output and leads can be customized

Applications:

  • Sub-Metering Accurate Measurement
  • Data Loggers to analyze Building & Machinery Performance
  • Digital Fault Recorders
  • Smart Grid Application Features
  • Load Center
  • Three Phase Balance Control
  • In-Factory Display In-Home Display
  • Inverters for Solar & Wind Turbine Systems
  • Power Measurement Device For PLC

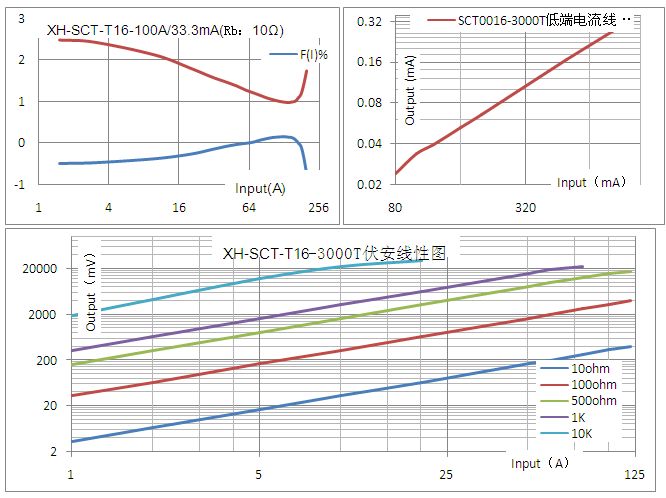

Curve Performance:
